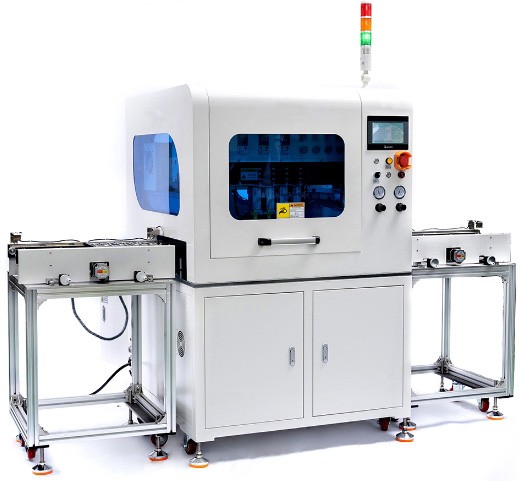

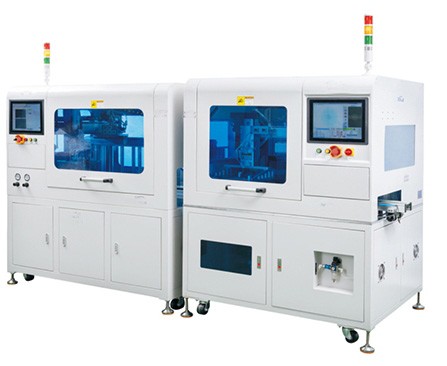

Multifunctional slitting machine

Suitable for composite PCB slitting connected to V-slots and stamp holes, especially for PCB slitting of parts crossing V-slots; Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LEDs, etc

Features of Online Multi functional Splitting Machine (Milling Knife+Saw Knife):
1. Fully automated and unmanned production line;
2. Suitable for cutting PCBA boards with different connection methods, such as stamp hole connection, V-CUT connection, and hybrid connection;
3. Especially for aluminum and copper substrates, the cutting effect is better;
4. The equipment is equipped with dual spindles, flexible switching, arbitrary settings, automatic switching, and can be used alone or simultaneously;
5. Patent designed follow-up dust system;
6. Visual Mark point automatic correction cutting solves the problem of incoming material deviation for different batches of products;
7. Professional board splitting software equipped with industrial control computers, with fast real-time data storage, sharing, uploading and other MES functions;
8. Capable of displaying cutting paths and images, with real-time correspondence between actual cutting paths and PCB images, and strong visualization;
9. Equipped with tool depth management function, suitable for deep cutting with components on the reverse side of the cutting point, ensuring good PCBA cutting without damaging the components;
Online multifunctional dividing machine (milling cutter+saw blade) feeding method:
1. Anti static belt transmission method, seamless docking with SMT peripheral equipment;
2. The track width can be automatically adjusted, with an adjustment range of 50-350MM;
3. Adopting independent modular design, easy and fast installation;
Online multifunctional slitting machine (milling cutter+saw blade) slitting structure:
1. Adopting servo motor combined with precision screw drive, effectively ensuring cutting speed and accuracy;
2. The saw blade cutter is driven by a high-speed brushless motor, effectively reducing cutting stress;
3. The saw blade is non stick and suitable for cutting aluminum substrates, copper substrates, FR4 and other sheets;
Online multifunctional dividing machine (milling cutter+saw blade) spindle:
1. High speed dual imported spindle for milling cutters and saw blades;
2. Multi functional split board, suitable for products with mixed boards (stamp holes+V card slots);
3. Solve the problem of changing the machine and wire for the mixed board (stamp hole, V-card slot).
Online multifunctional slitting machine (milling cutter+saw blade) gripping mechanism:
1. The X-axis is driven by imported belts and closed-loop stepper motors, which have fast response speed, high accuracy, and low maintenance costs;
2. The material retrieval adopts a dual robotic arm independent operation method, which is high in efficiency, strong in flexibility, fast in changing lines, and equipped with abnormal product retrieval and placement alarms;

3. Equipped with a multifunctional straight air suction nozzle, convenient and fast product line earning;

Online multifunctional dividing machine (milling cutter+saw blade) mechanical arm swing plate:
1. The X-axis is driven by imported belts and closed-loop stepper motors, which have fast response speed, high accuracy, and low maintenance costs;
2. The material retrieval adopts a dual robotic arm independent operation method, which has high efficiency, strong flexibility, and fast line changing. Equipped with abnormal product handling alarm;
3. Equipped with a multifunctional vacuum nozzle, convenient and fast product line replacement.
Online multifunctional dividing machine (milling cutter+saw blade) spindle:
1. High speed dual imported spindle for milling cutters and saw blades;
2. Multi functional split board, suitable for products with mixed boards (stamp holes+V card slots);
3. Solve the problem of changing the machine and wire for the mixed board (stamp hole, V-card slot).

Technical parameters of online multifunctional dividing machine (milling cutter+saw blade):
1. Working mode: online
2. Number of workbenches: 360 ° C rotation per workstation
3. Splitting area: 300 * 300MM
4. Control method: PC industrial computer
5. Drive mode: motion control card+servo motor
6. Splitting speed: 0-100MM/S
7. Milling cutter speed: 0-60000 RPM Saw blade speed: 0-40000 RPM
8. Repetitive accuracy: ± 0.02mm
9. Cutting accuracy: ± 0.05mm
10. Plate thickness ratio: 0-6mm
11. Working voltage: AC380V 5KW
12. Working pressure: 0.5 ` 0.7MPA
8. Vacuum suction method: upper suction
13. Weight: 800KG
10. External dimensions: length 1800 * width 1500 * height 2200mm

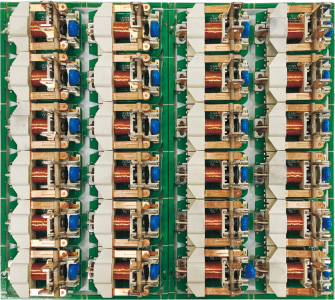

Online multifunctional splitting machine (milling cutter+saw blade) splitting sample:
