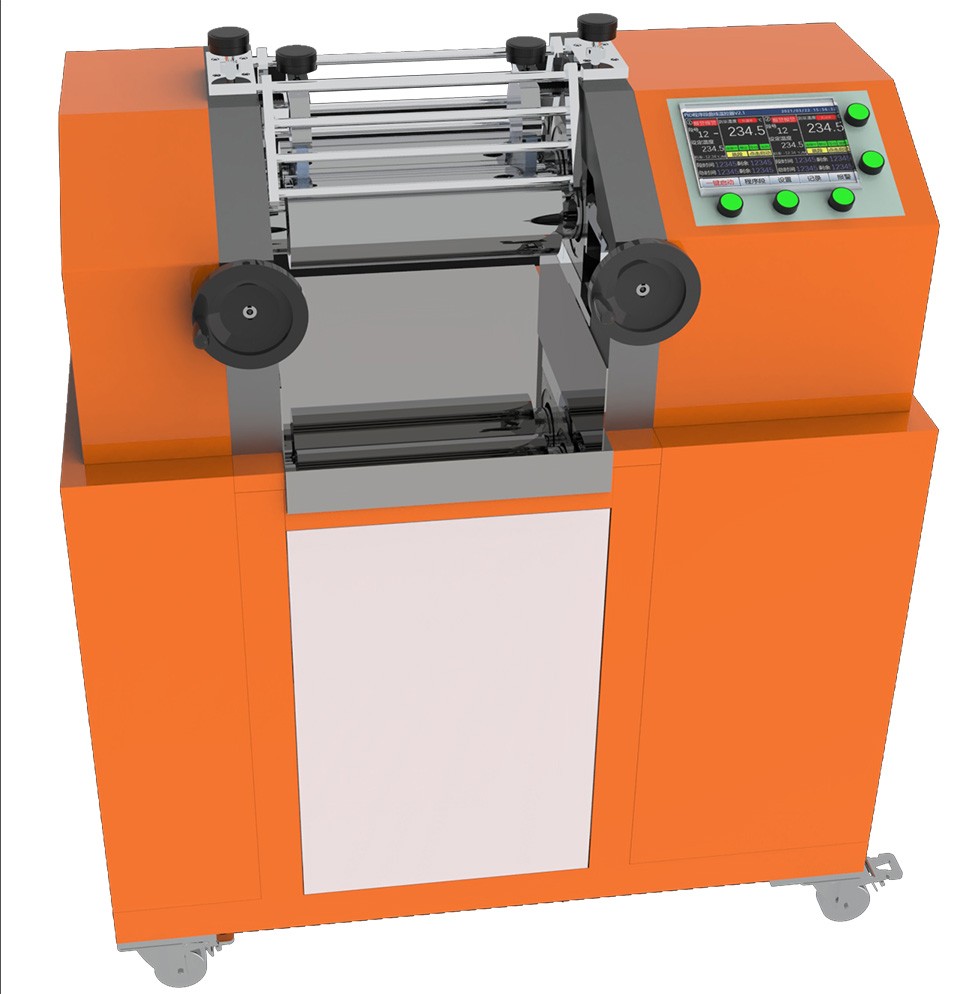

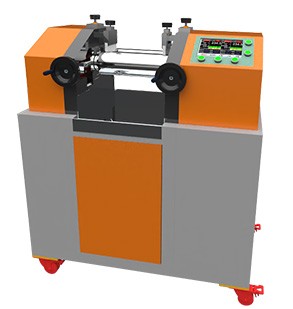

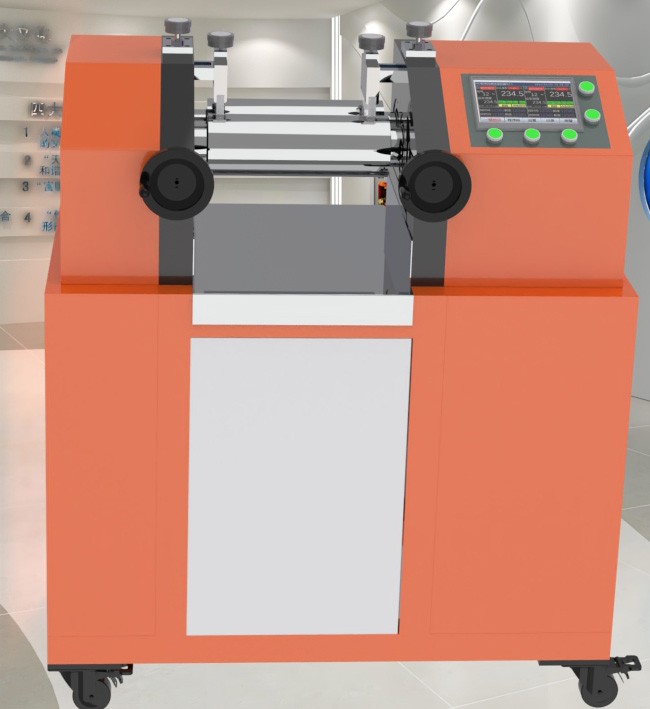

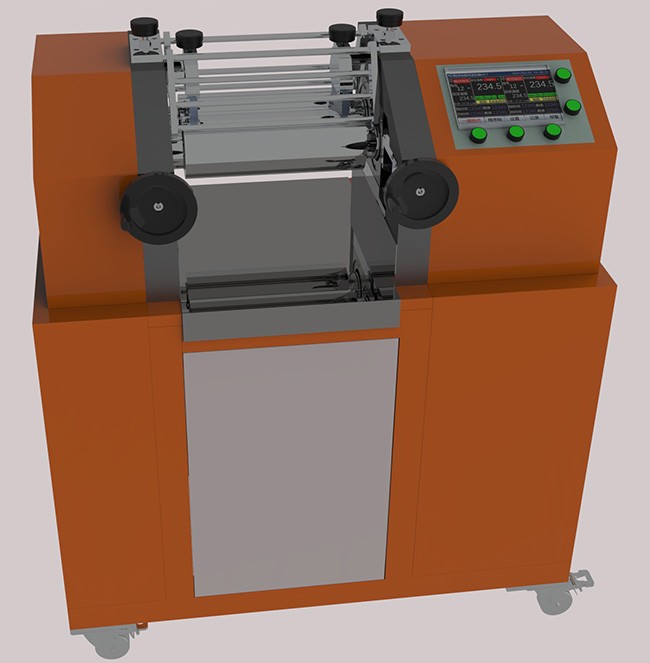

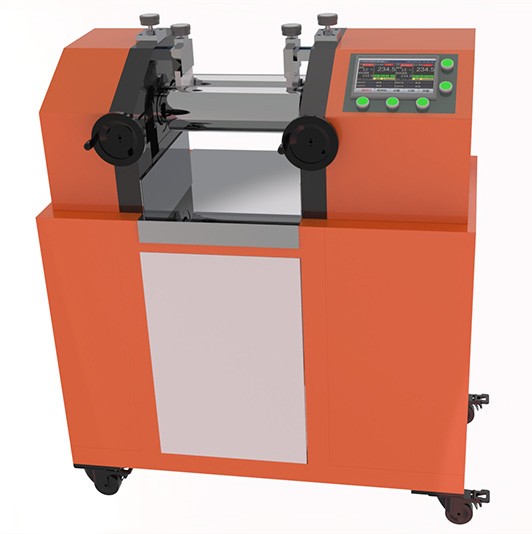

Two roll open mill
Model JSD-122A-2 is an experimental open mill suitable for the mixing and processing of polymers such as PVC, color masterbatch, and other chemical raw materials in the plastic industry. After adding the drum to the required temperature of the raw materials, rotate the drum, mix the raw materials and ingredients evenly, and test the color and quality of the product to meet the requirements.
1，Upgraded spacing display to digital display
2，Upgraded material blocking adjustment (optional automatic)
3，Upgrade of bracket structure
4，Upgrading the dovetail guide rail
Constant speed cannot be adjusted
1：1.25
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Color
orange or customized
Place of Origin
Guangdong, China
Mixed capacity
0.5-1kg
Drum temperature
room temperature -250 ℃/280 ℃/300 ℃
Drum size
Φ120×L 350mmcustomizable（2"、4"、5"、6"、7"、8"、10"）
Bearing
self-aligning bearing, capable of withstanding large load and adjustable clearance
Drum spacing
0～6mmmanual distance adjustment (optional electric distance adjustment)
Safety device
Multiple touch emergency stops can be ordered, which can stop or reverse the machine in emergency situations
Heating method
Three point electric heating, high power, fast heating, and strong durability
Temperature accuracy
±3℃,Touch screen digital temperature controller controls temperature
Temperature sensing rod
screw in thermocouple, temperature measurement sensitive, uniform, and high accuracy
Material flipping method
manual flipping (optional electric flipping)
Roller surface
HRC55~60, mirror treated with deep carbonization and hard chrome plating processes
Model
JSD-K122A-2
JSD-K122B-2
JSD-K122C-2
Drum speed
0~35r/min
0~35r/min
24r/min
Drum speed ratio
Dual frequency modulation ratio
Single frequency modulation speed regulation1：1.25
Motor
1HP Taiwan reduction (40 ratio, 60 ratio) motor (equipped according to drum size)
Volume
1100×550×1300 mm(W×D×H )
Weight
approximately420kg
Power supply
3∮, AC380V
