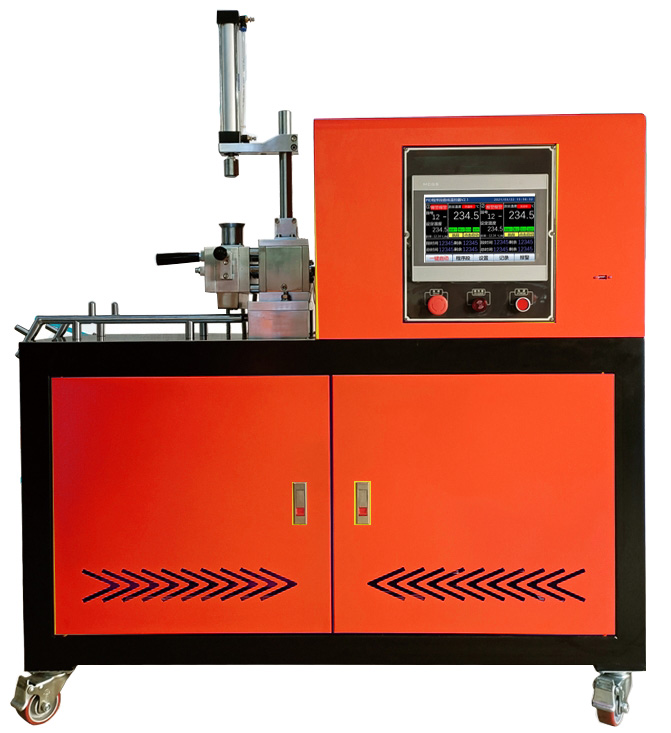

Open close mixer

Product Item : JSD-M001A-1
Category： Internal mixer
Small internal mixer
Experimental mixer
Dust proof internal mixer
electric heating internal mixer
INQUIRY EMAIL

The open close mixer is mainly used for kneading, dispersing, mixing, plasticizing various rubber, plastic raw materials, engineering modified materials, metal powder, ceramic powder and other raw materials. Can produce EVA PVC、TPR、PE、PP、PC、 Raw materials for rubber and plastic products such as metal powder, ceramic powder, functional masterbatch, rubber additives, shoe materials, rubber tires, sealing miscellaneous parts, electronic products, wires and cables, automotive products, etc
PLC programmable color touch screen, human-machine interface operating system, all parameters can be set and controlled arbitrarily, and the mixing process (temperature, time, torque, speed and other process parameter curve changes) is dynamically displayed.

Open close mixer

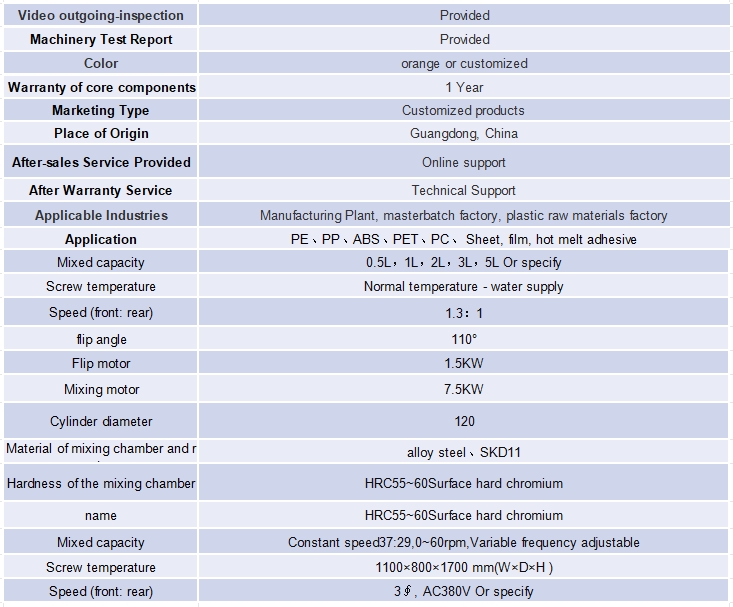

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Mixed capacity	0.5L，1L，2L，3L，5L Or specify
Screw temperature	Normal temperature - water supply
Speed (front: rear)	1.3：1
flip angle	110°
Flip motor	1.5KW
Mixing motor	7.5KW
Cylinder diameter	120
Material of mixing chamber and rotor	alloy steel、SKD11
Hardness of the mixing chamber	HRC55~60Surface hard chromium
name	HRC55~60Surface hard chromium
Mixed capacity	Constant speed37:29,0~60rpm,Variable frequency adjustable
Screw temperature	1100×800×1700 mm(W×D×H )
Speed (front: rear)	3∮, AC380V Or specify
