Vacuum tablet press

Product Item : JSD-P331A-1
Category： Flat vulcanization machine
Vacuum tablet press
vacuum press
Laboratory vacuum tablet press
Laboratory flat vulcanizing machine
INQUIRY EMAIL

The vacuum tablet press (flat vulcanization machine) is powered by an oil cylinder and is suitable for rubber and plastic raw materials, pigments, lubricants, chemical raw materials, etc. Put each type of raw material into a mold, clamp it between the electric heating plates of the machine, apply appropriate pressure, temperature, and time to dissolve and discharge the raw material, then apply maximum pressure to shape the material into thin sheets for testing and inspection. Promote product development and sampling. It is the foundation of large-scale production and can greatly help reduce transaction time and costs with customers.

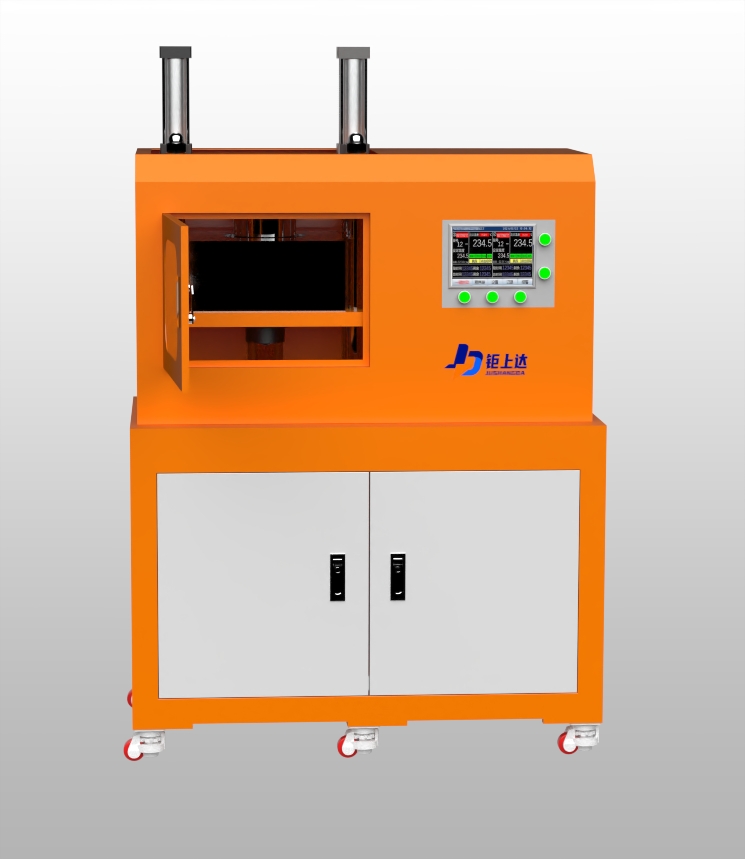

Working vacuum state：

Working vacuum state

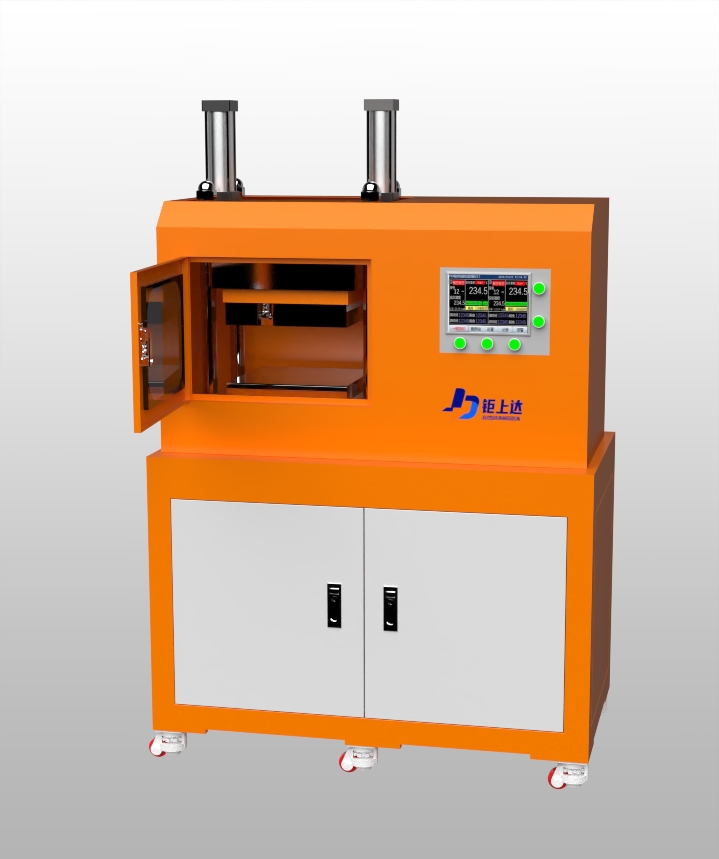

Tablet press open status

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Pressure	10. 20, 30, 50, and 100 toms can be ordered
Temperature	Normal temperature~300 ℃
Heating plate area	300 x 300 mm can be ordered
model	JSD-P331A-1,JSD-P331B-1,JSD-P331C-1
Temperature accuracy	± 2 ℃
Heating method	Electric heating mold
Temperature sensing rod	Screw in thermocouple, temperature measurement sensitive, uniform, and high accuracy
pressure control	Hydraulic controller replenishment
Workboard surface	Double sided grinding with 0.8s for better flatness, HRC55-60, deep carbonization and hard chrome plating processes
Plate spacing	0~145mm can be ordered
Oil pump motor	2.2KW
volume	1000 x 700 x 1500 mm (W x D x H)
weight	Approximately 820kg
source	3 Å, AC380V, 20A
