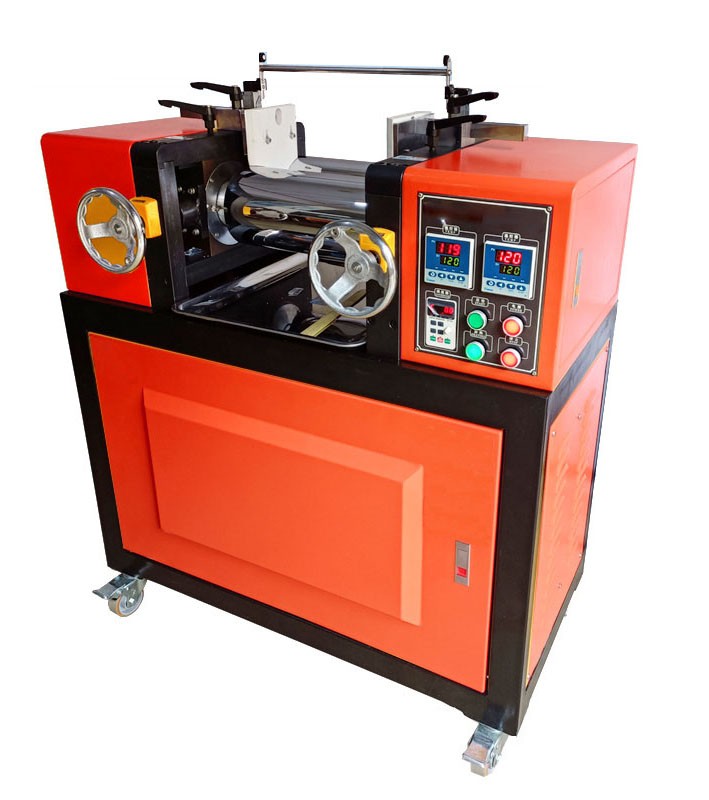

Plastic open mill

Product Item : JSD-K121A-1
Category： Two Roll Mill
Plastic open mill
Oil heating small open mill
PVC open mill
Silicone open mill
INQUIRY EMAIL

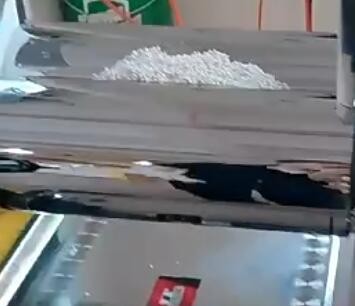

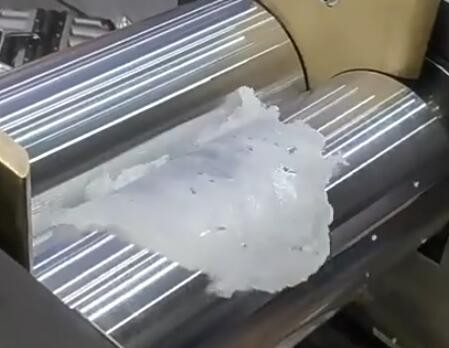

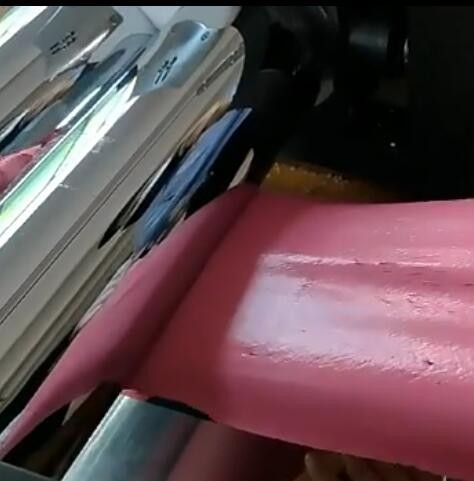

JSD-121A-1 is an oil heated small-scale open mill suitable for the mixing and processing of polymers such as PVC, color masterbatch and other chemical raw materials in the plastic industry. After adding the drum to the required temperature of the raw materials, rotate the drum, mix the raw materials and ingredients evenly, and test the color and quality of the product to meet the requirements.

1，Upgraded spacing display to digital display

2，Upgraded material blocking adjustment (optional automatic)

Oil heating and refining machine

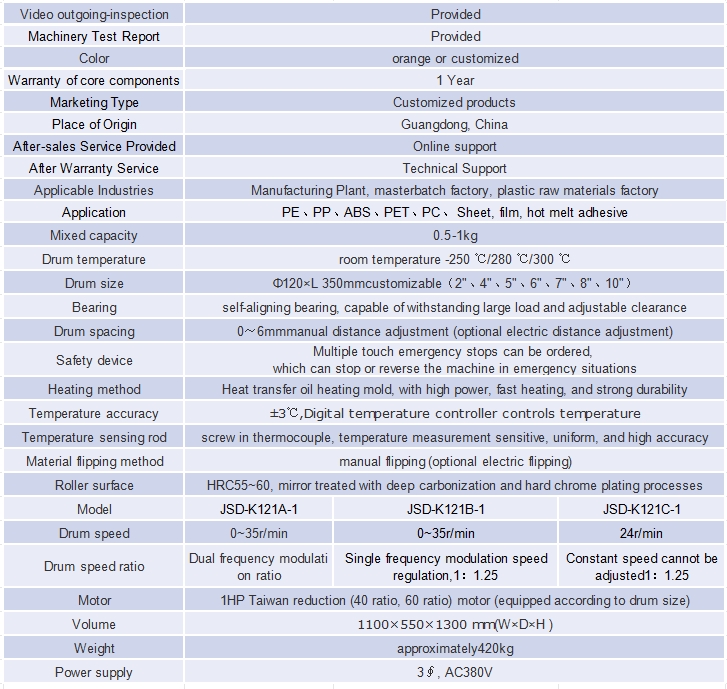

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Mixed capacity	0.5-1kg
Drum temperature	room temperature -250 ℃/280 ℃/300 ℃
Drum size	Φ120×L 350mmcustomizable（2"、4"、5"、6"、7"、8"、10"）
Bearing	self-aligning bearing, capable of withstanding large load and adjustable clearance
Drum spacing	0～6mmmanual distance adjustment (optional electric distance adjustment)
Safety device	Multiple touch emergency stops can be ordered, which can stop or reverse the machine in emergency situations
Heating method	Heat transfer oil heating mold, with high power, fast heating, and strong durability
Temperature accuracy	±3℃,Digital temperature controller controls temperature
Temperature sensing rod	screw in thermocouple, temperature measurement sensitive, uniform, and high accuracy
Material flipping method	manual flipping (optional electric flipping)
Roller surface	HRC55~60, mirror treated with deep carbonization and hard chrome plating processes
Model	JSD-K121A-1	JSD-K121B-1	JSD-K121C-1
Drum speed	0~35r/min	0~35r/min	24r/min
Drum speed ratio	Dual frequency modulation ratio	Single frequency modulation speed regulation,1：1.25	Constant speed cannot be adjusted 1：1.25
Motor	1HP Taiwan reduction (40 ratio, 60 ratio) motor (equipped according to drum size)
Volume	1100×550×1300 mm(W×D×H )
Weight	approximately420kg
Power supply	3∮, AC380V
