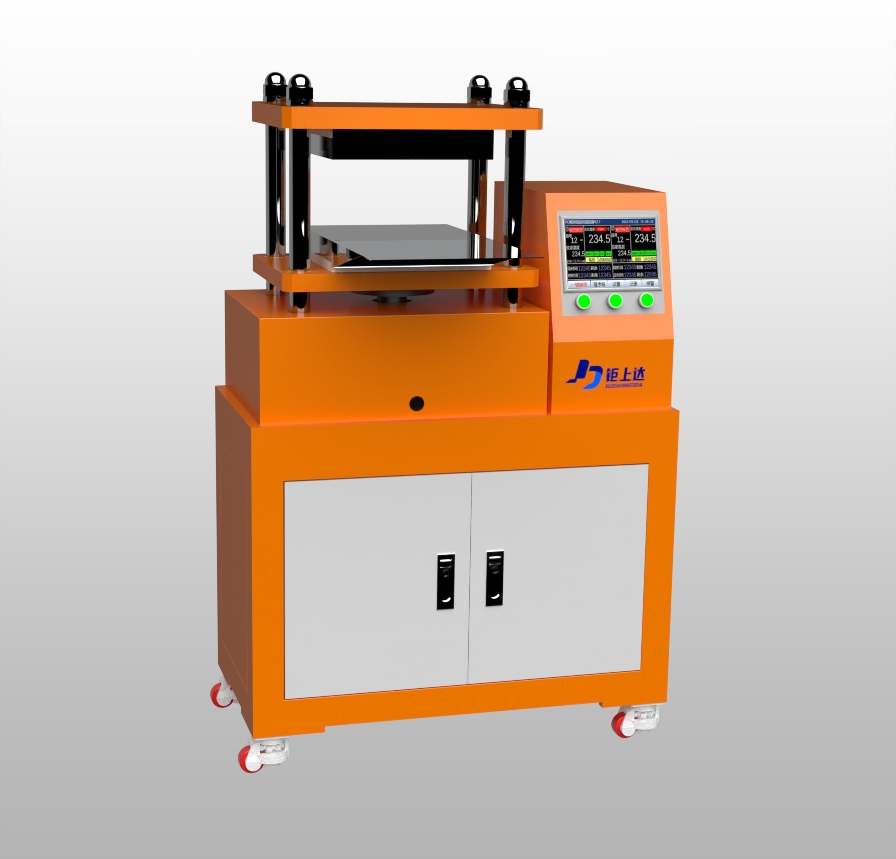

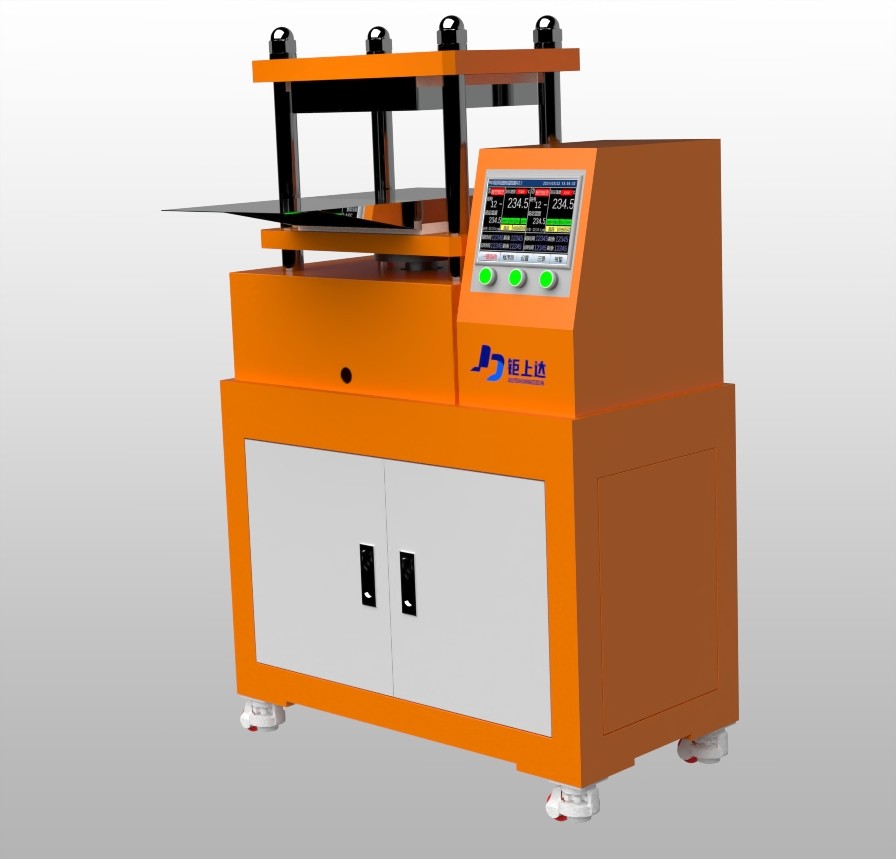

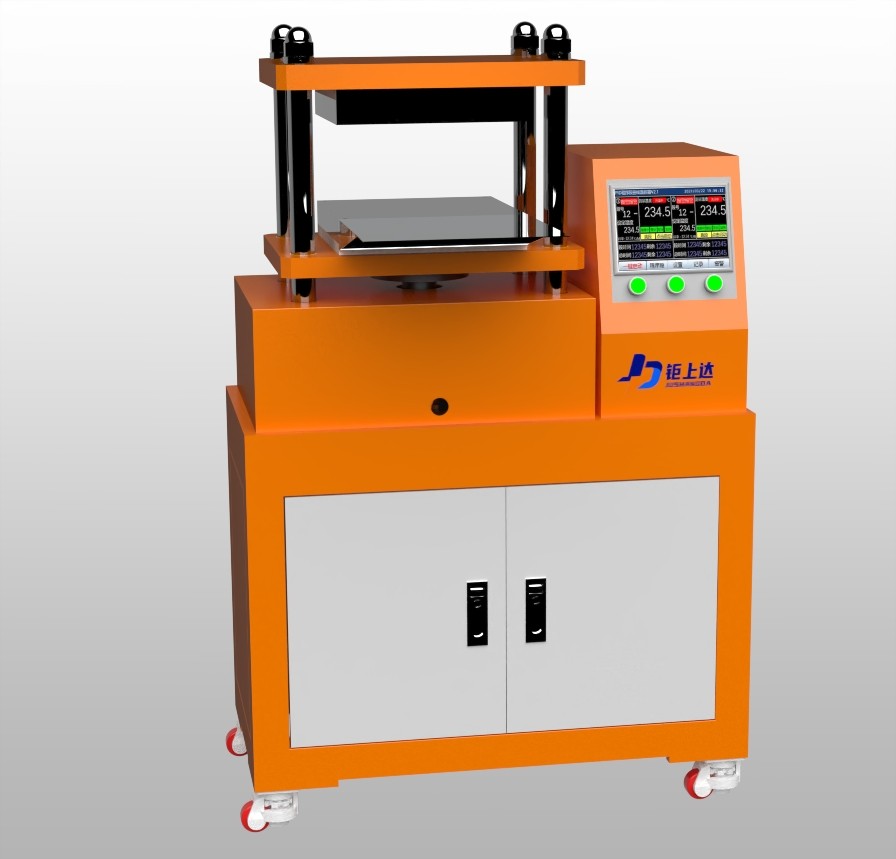

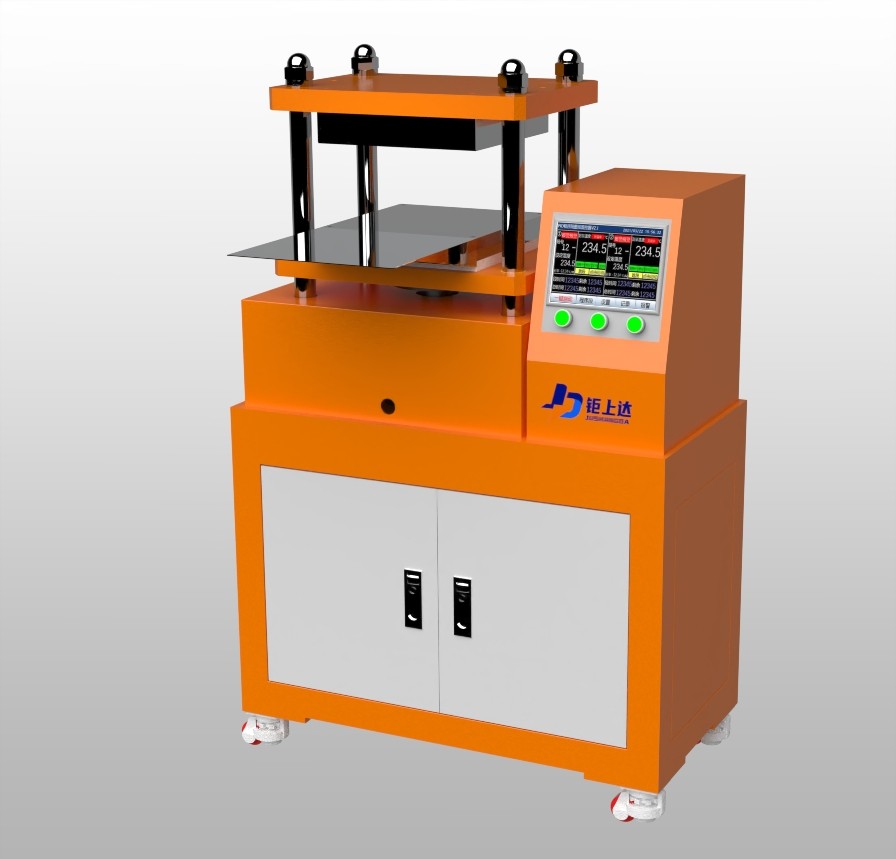

20T Pneumatic Plastic Molding Testing Machine

Product Item : JSD-S325A-2
Category： Flat vulcanization machine
Plastics＆Rubber＆Pigments＆Oleomers＆Chemicals, processing machine/heat press machine
20T Pneumatic Plastic Molding Testing Machine
processing machine/heat press machine
Press Machine
INQUIRY EMAIL

Pneumatic flat vulcanization machine

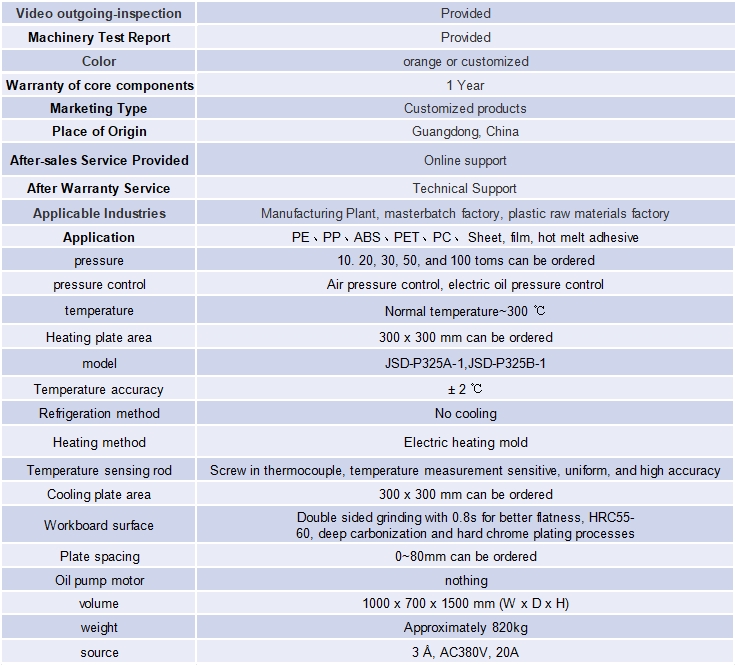

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
pressure	10. 20, 30, 50, and 100 toms can be ordered
pressure control	Air pressure control, electric oil pressure control
temperature	Normal temperature~300 ℃
Heating plate area	300 x 300 mm can be ordered
model	JSD-P325A-2,JSD-P325B-2
Temperature accuracy	± 2 ℃
Refrigeration method	No cooling
Heating method	Electric heating mold
Temperature sensing rod	Screw in thermocouple, temperature measurement sensitive, uniform, and high accuracy
Cooling plate area	300 x 300 mm can be ordered
Workboard surface	Double sided grinding with 0.8s for better flatness, HRC55-60, deep carbonization and hard chrome plating processes
Plate spacing	0~80mm can be ordered
Oil pump motor	nothing
volume	1000 x 700 x 1500 mm (W x D x H)
weight	Approximately 820kg
source	3 Å, AC380V, 20A
