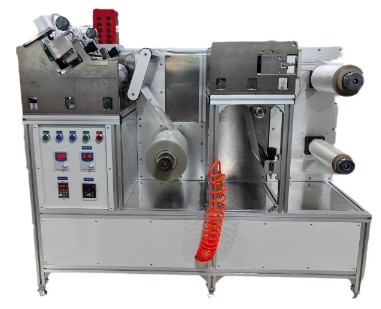

Hot melt adhesive coating machine

Product Item : JSD-R300A-1
Category： Hot melt adhesive coating machine
Hot melt adhesive coating machine
Pneumatic flat vulcanization machine
PVC open mill
Pneumatic tablet press
INQUIRY EMAIL

Rapid melting of hot melt adhesive through molds and material surfaces
Coating and composite: The casting machine uses a coating device to apply its hot melt adhesive to other materials (such as PET, paper, aluminum foil, leather, fabric, etc.) to the surface of the film, achieving coating or composite of the film. The coating device can be adjusted as needed to control the thickness and uniformity of the coating.

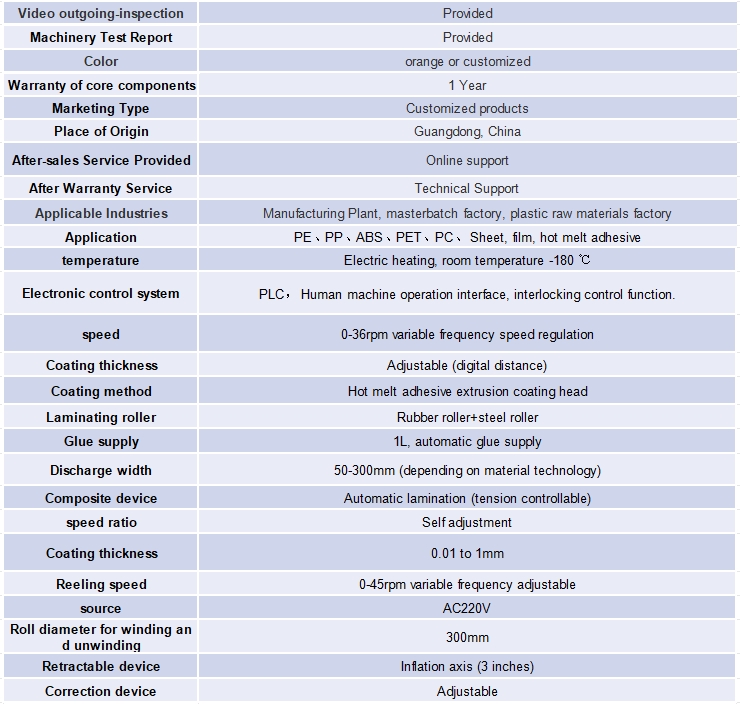

Key attributes:

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
temperature	Electric heating, room temperature -180 ℃
Electronic control system	PLC， Human machine operation interface, interlocking control function.
speed	0-36rpm variable frequency speed regulation
Coating thickness	Adjustable (digital distance)
Coating method	Hot melt adhesive extrusion coating head
Laminating roller	Rubber roller+steel roller
Glue supply	1L, automatic glue supply
Discharge width	50-300mm (depending on material technology)
Composite device	Automatic lamination (tension controllable)
speed ratio	Self adjustment
Coating thickness	0.01 to 1mm
Reeling speed	0-45rpm variable frequency adjustable
source	AC220V
Roll diameter for winding and unwinding	300mm
Retractable device	Inflation axis (3 inches)
Correction device	Adjustable
