Product Item : JSD-K120B-1
Category： Two Roll Mill
Two Roll Mill
9-inch Two Roll Mill
Laboratory PVC Mixer Machine Plastic Rolling Mixer Open Two Roll Mill
SiliconeTwo Roll Mill
INQUIRY EMAIL

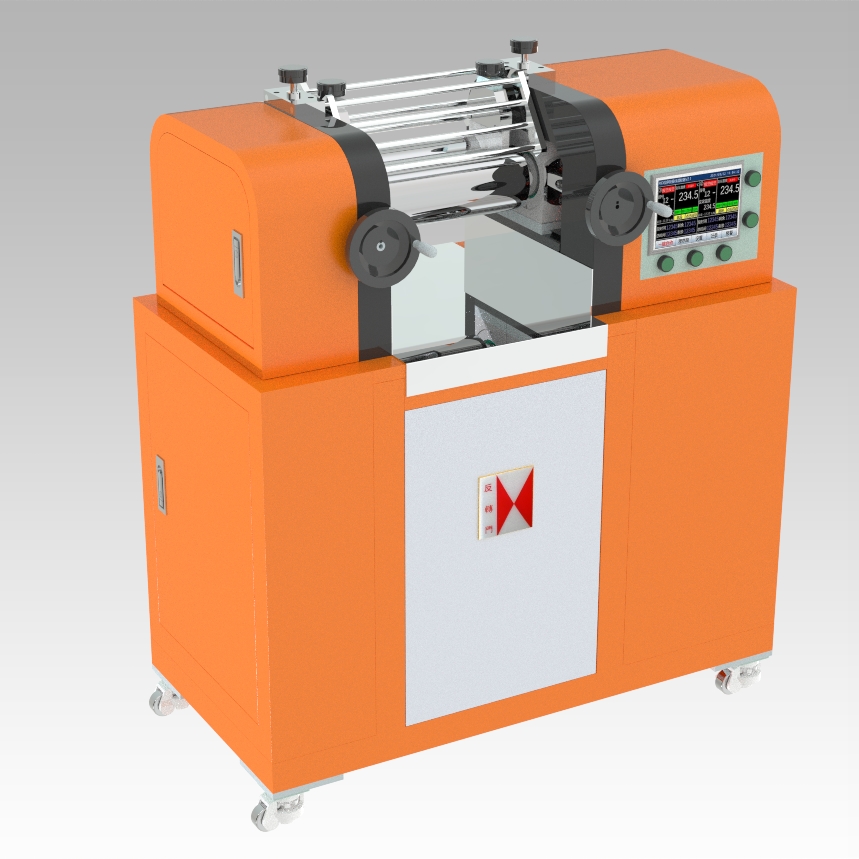

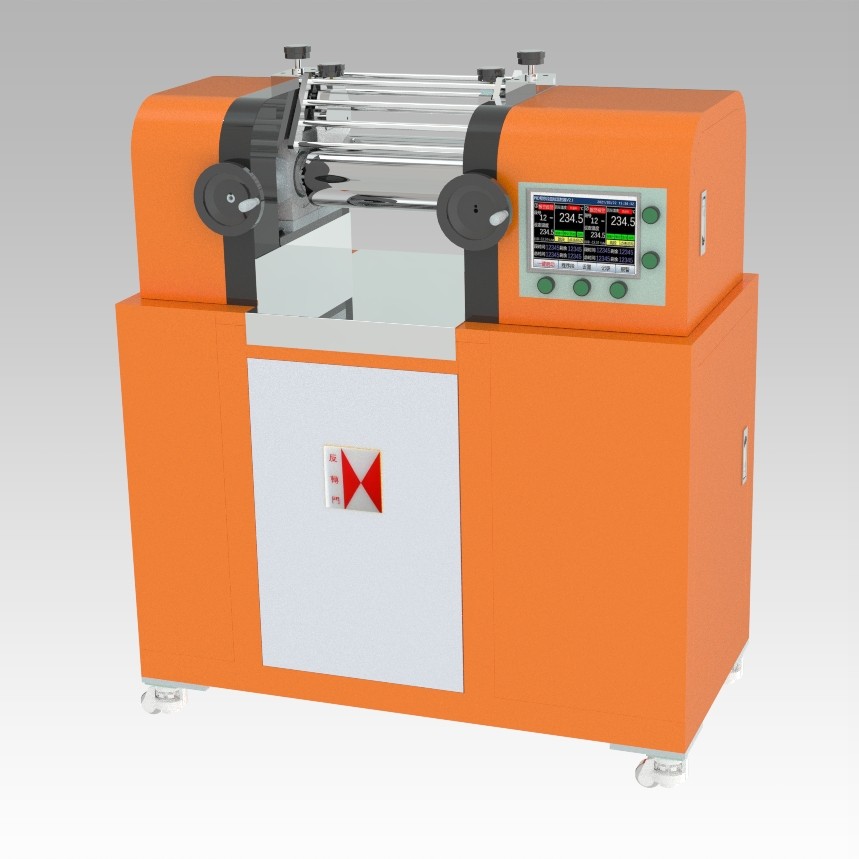

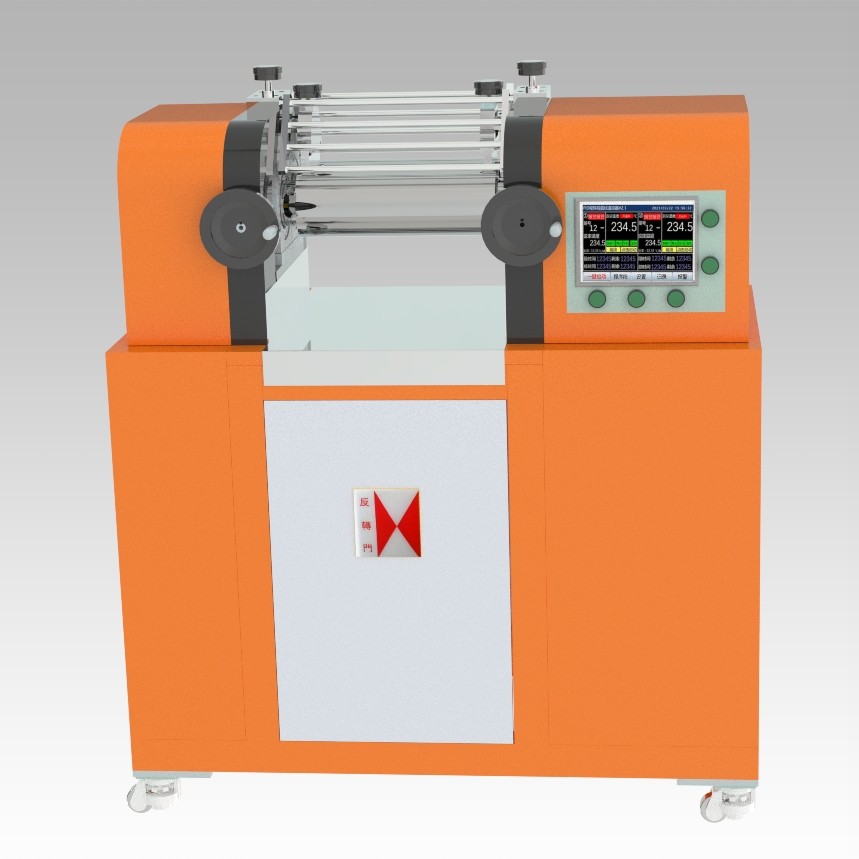

Model JSD-122B-2 is an experimental open mill suitable for the mixing and processing of polymers such as PVC, color masterbatch, and other chemical raw materials in the plastic industry. After adding the drum to the required temperature of the raw materials, rotate the drum, mix the raw materials and ingredients evenly, and test the color and quality of the product to meet the requirements.

Product Application

			The machine is used to mix the raw material and additional agents uniformly for testing,  and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and          color which specified by the customer.

Two roll mill is widely used in rubber, plastics industries. Such as polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizers, stabilizers and so on. The main purpose is to test raw materials's physical properties change and contrast after mixing. Such as color dispersion, light transmission, substance table.

PVC open mill

Two Roll Mill

Key attributes

Main Features

				1) Built-in heater, together with LED temperature controller and high-precision .

2) Taiwan Bangcheng motor, low noise, stable operation and good durability.

3) A lot safety devices guarantees the operator's safety .

4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.

5) Speed and speed ratio can be adjusted for both roller.

6) We can provide customized production to satisfied customer's specifical requirements.

Other attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	1 Year
Color	orange or customized
Place of Origin	Guangdong, China
Mixed capacity	0.5-1kg
Drum temperature	room temperature -250 ℃/280 ℃/300 ℃
Drum size	Φ120×L 350mmcustomizable（2"、4"、5"、6"、7"、8"、10"）
Bearing	self-aligning bearing, capable of withstanding large load and adjustable clearance
Drum spacing	0～6mmmanual distance adjustment (optional electric distance adjustment)
Safety device	Multiple touch emergency stops can be ordered, which can stop or reverse the machine in emergency situations
Heating method	Three point electric heating, high power, fast heating, and strong durability
Temperature accuracy	±3℃,Touch screen digital temperature controller controls temperature
Temperature sensing rod	screw in thermocouple, temperature measurement sensitive, uniform, and high accuracy
Material flipping method	manual flipping (optional electric flipping)
Roller surface	HRC55~60, mirror treated with deep carbonization and hard chrome plating processes
Model	JSD-K120B0-1	JSD-K120B1-1	JSD-K120B2-1
Drum speed	0~35r/min	0~35r/min	24r/min
Drum speed ratio	Dual frequency modulation ratio	Single frequency modulation speed regulation1：1.25	Constant speed cannot be adjusted 1：1.25
Motor	1HP Taiwan reduction (40 ratio, 60 ratio) motor (equipped according to drum size)
Volume	1100×550×1300 mm(W×D×H )
Weight	approximately420kg
Power supply	3∮, AC380V
