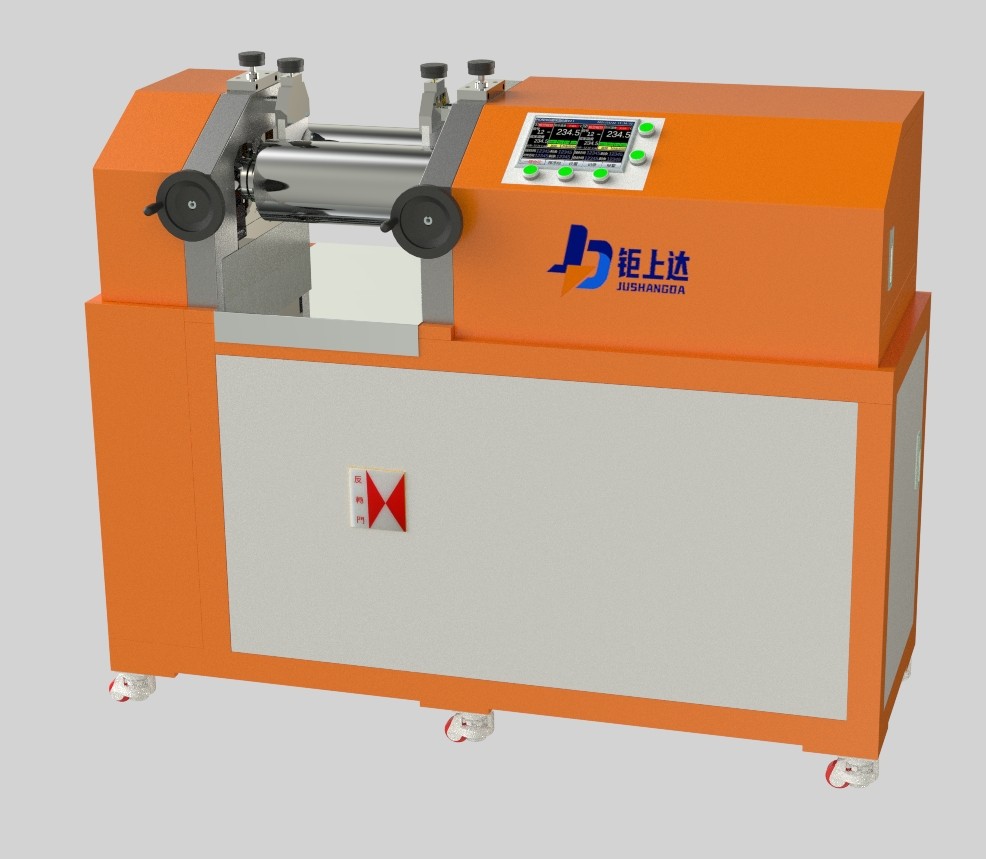

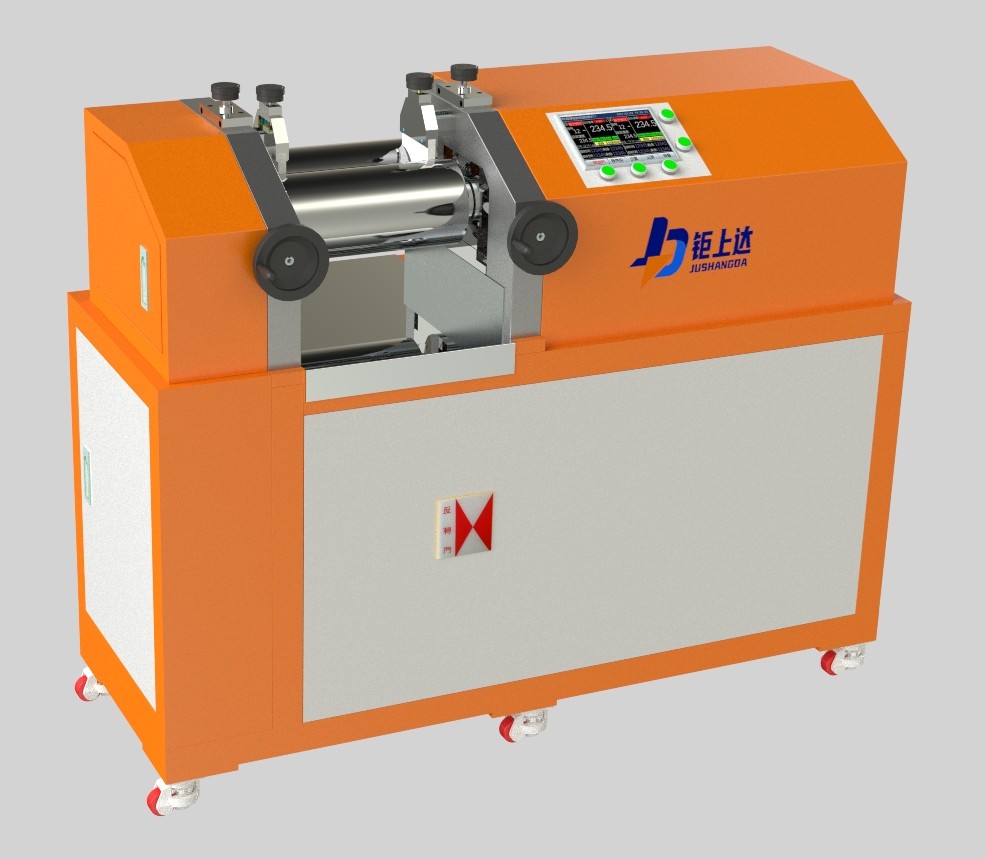

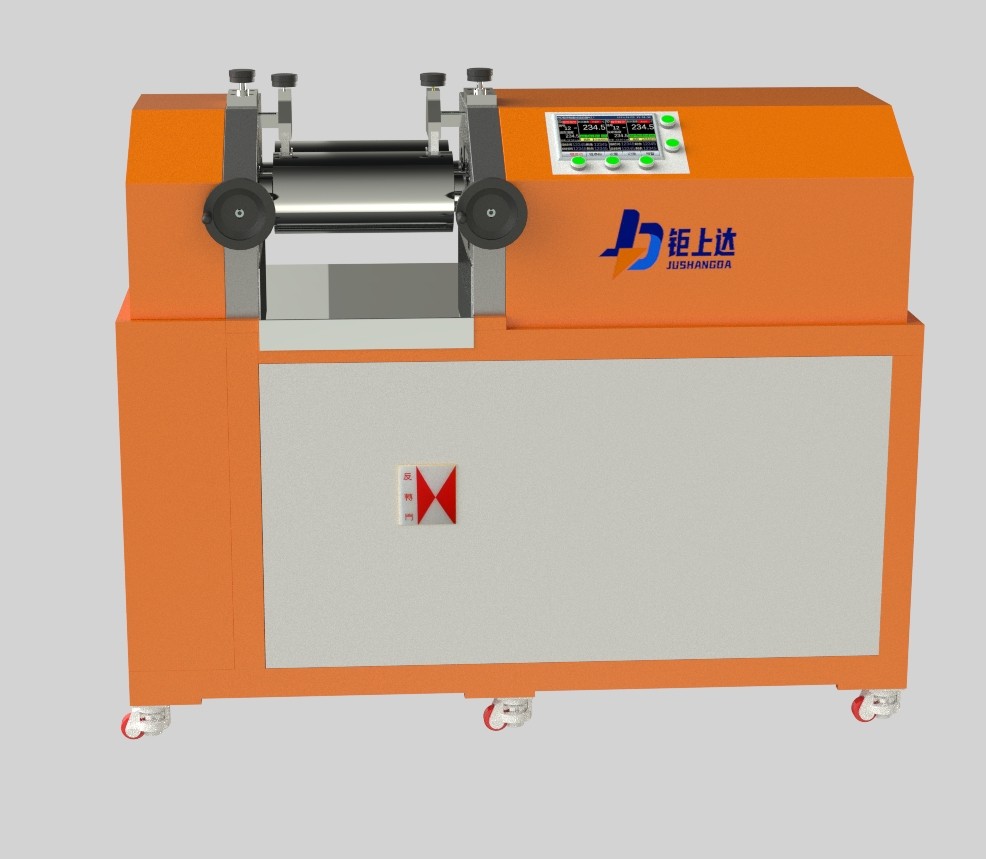

Rubber Processing Machinery Lab Rubber Open Two Roll Mixing Mill With Water Cooling

Rubber Processing Machinery Lab Rubber Open Two Roll Mixing Mill With Water Cooling

Product Item : JSD-K160A-1
Category： Two Roll Mill
mixing mill
9-inch open mill
Two Roll Mill
Experimental rubber open mill
INQUIRY EMAIL

JSD-160A is an experimental rubber mixer suitable for mixing and processing chemical raw materials such as silicone. Fill the drum with water, rotate the drum, mix the rubber and compounding agent evenly, and test the required color and quality of the product by taking out slices.

1，Upgraded spacing display to digital display

2，Upgraded material blocking adjustment (optional automatic)

mixing mill

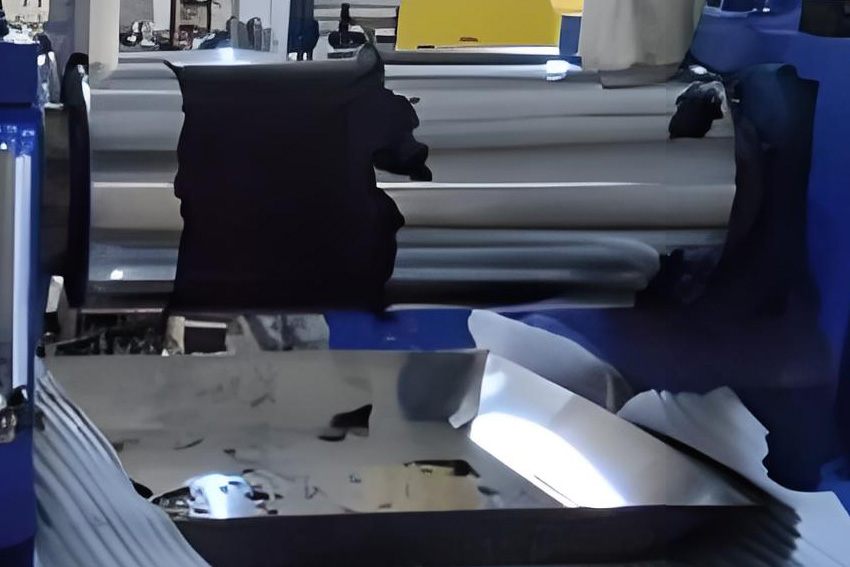

Working diagram of the open mill

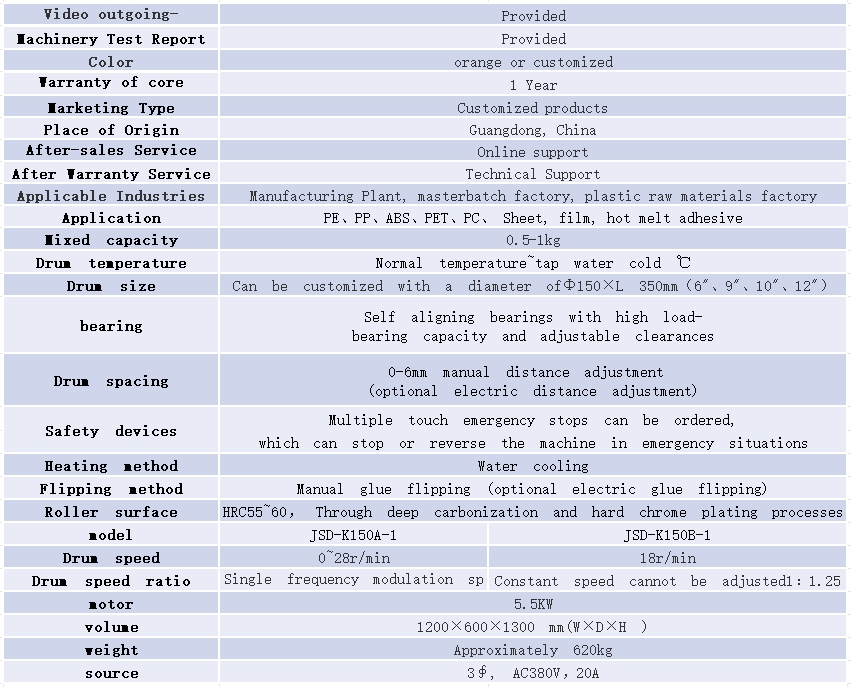

Parameter table for open mill

Main Features

					1) Running water cooling for rubber material.

2) Telfon stop block.

3) Taiwan gear motor, together with high-precision gearing chain, brings stable operation, low noise and good durability.

4) Emergent reverse gurantees the safety.

					5) Single speed regulator, it can change the speed ratio for both rollers.

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Mixed capacity	0.5-1kg
Drum temperature	Normal temperature~tap water cold ℃
Drum size	Can be customized with a diameter ofΦ150×L 350mm（6"、9"、10"、12"）
bearing	Self aligning bearings with high load-bearing capacity and adjustable clearances
Drum spacing	0-6mm manual distance adjustment (optional electric distance adjustment)
Safety devices	Multiple touch emergency stops can be ordered,
	which can stop or reverse the machine in emergency situations
Heating method	Water cooling
Flipping method	Manual glue flipping (optional electric glue flipping)
Roller surface	HRC55~60， Through deep carbonization and hard chrome plating processes
model	JSD-K160A-1	JSD-K160B-1
Drum speed	0~28r/min	18r/min
Drum speed ratio	Single frequency modulation speed regulation1：1.25	Constant speed cannot be adjusted1：1.25
motor	5.5KW
volume	1200×600×1300 mm(W×D×H )
weight	Approximately 620kg
source	3∮, AC380V，20A
