Manual tablet press

Product Item : JSD-S321A-2
Category： Flat vulcanization machine
Manual double-layer vulcanization machine
Manual tablet press
PVC open mill
Silicone open mill
INQUIRY EMAIL

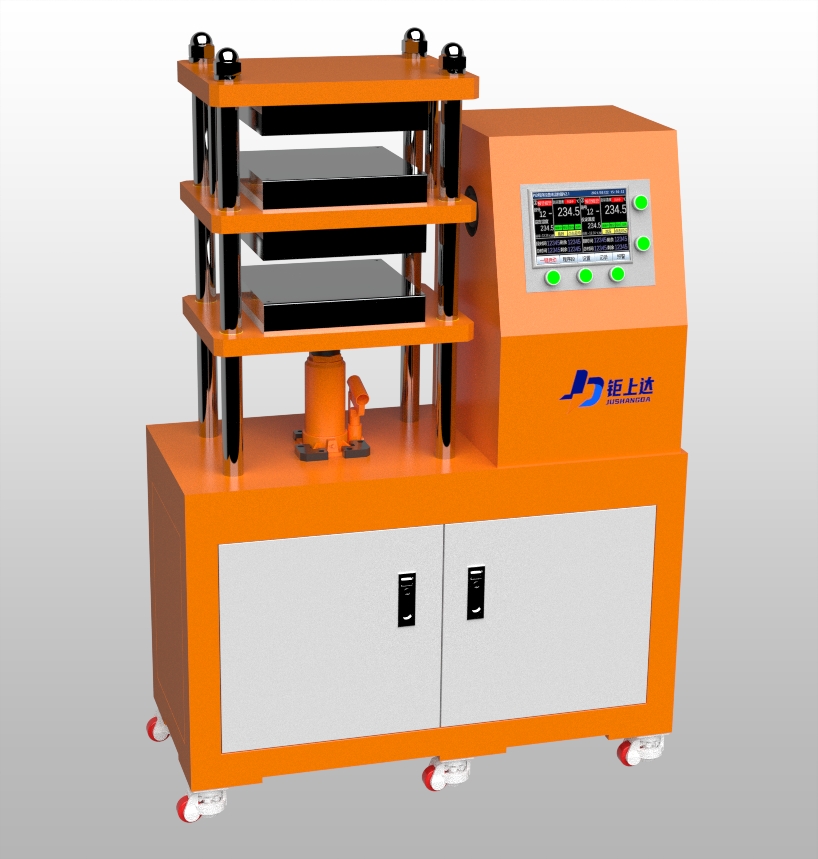

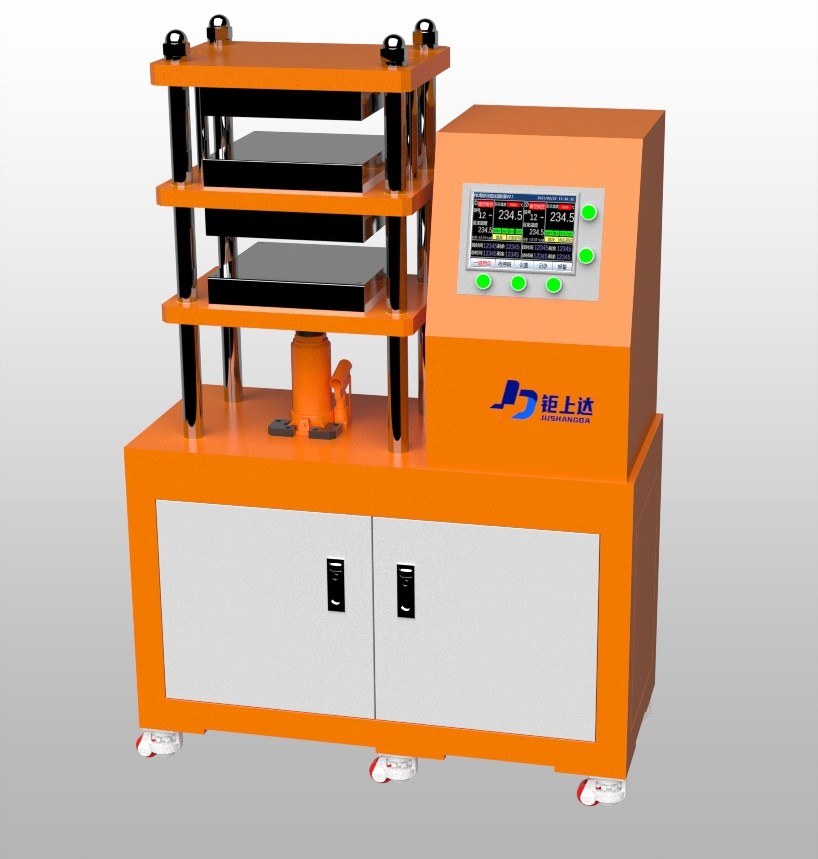

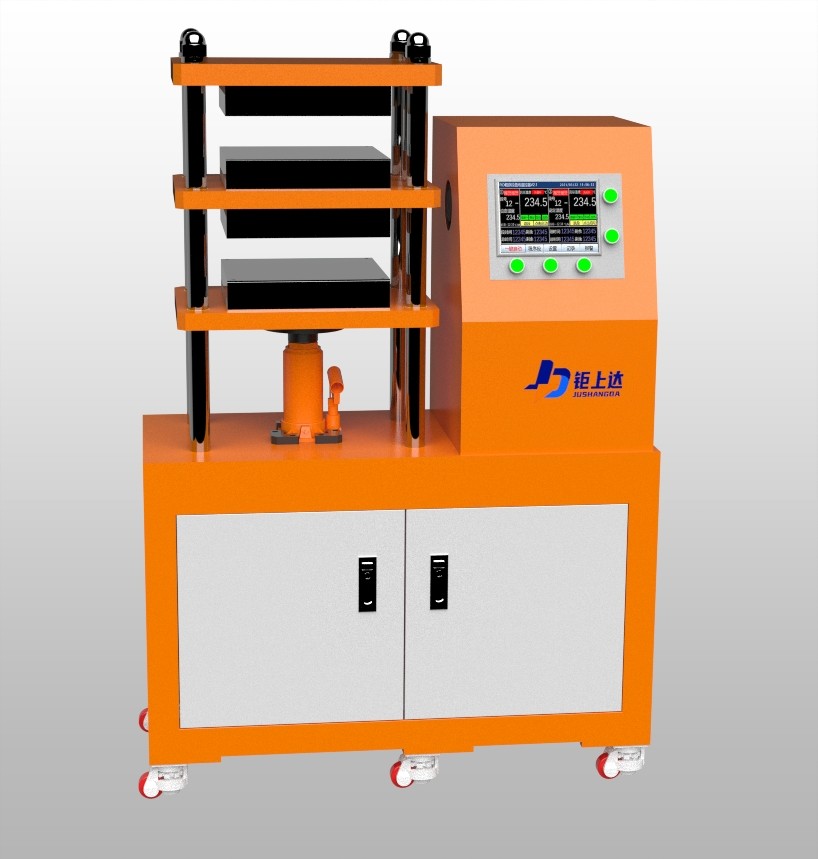

The double-layer hot and cold tablet press (flat vulcanization machine) is powered by a manual oil cylinder and is suitable for rubber and plastic raw materials, pigments, oil and rubber, chemical raw materials, etc. Place each raw material in the mold, clamp it between the electric heating plates of the machine, apply appropriate pressure, temperature, and time to dissolve and exhaust the raw material, and then apply maximum pressure to shape the material into sheets for testing and detection. Facilitate product development and sampling. It serves as the basis for mass production and can greatly assist in reducing transaction time and costs with customers.

Add a design workbench for easier operation

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
pressure	10. 20, 30, 50, and 100 toms can be ordered
temperature	Normal temperature~300 ℃
Heating plate area	300 x 300 mm can be ordered
Cooling plate area	300 x 300 mm can be ordered
model	JSD-P321A-2,JSD-P321B-2,JSD-P321C-2
Temperature accuracy	± 2 ℃
Refrigeration method	Water cooling, compressor cooling
Heating method	Electric heating mold
Temperature sensing rod	Screw in thermocouple, temperature measurement sensitive, uniform, and high accuracy
pressure control	Hydraulic controller replenishment
Workboard surface	Double sided grinding with 0.8s for better flatness, HRC55-60, deep carbonization and hard chrome plating processes
Plate spacing	0~80mm can be ordered
Oil pump motor	nothing
volume	1000 x 700 x 1500 mm (W x D x H)
weight	Approximately 820kg
source	3 Å, AC380V, 20A
