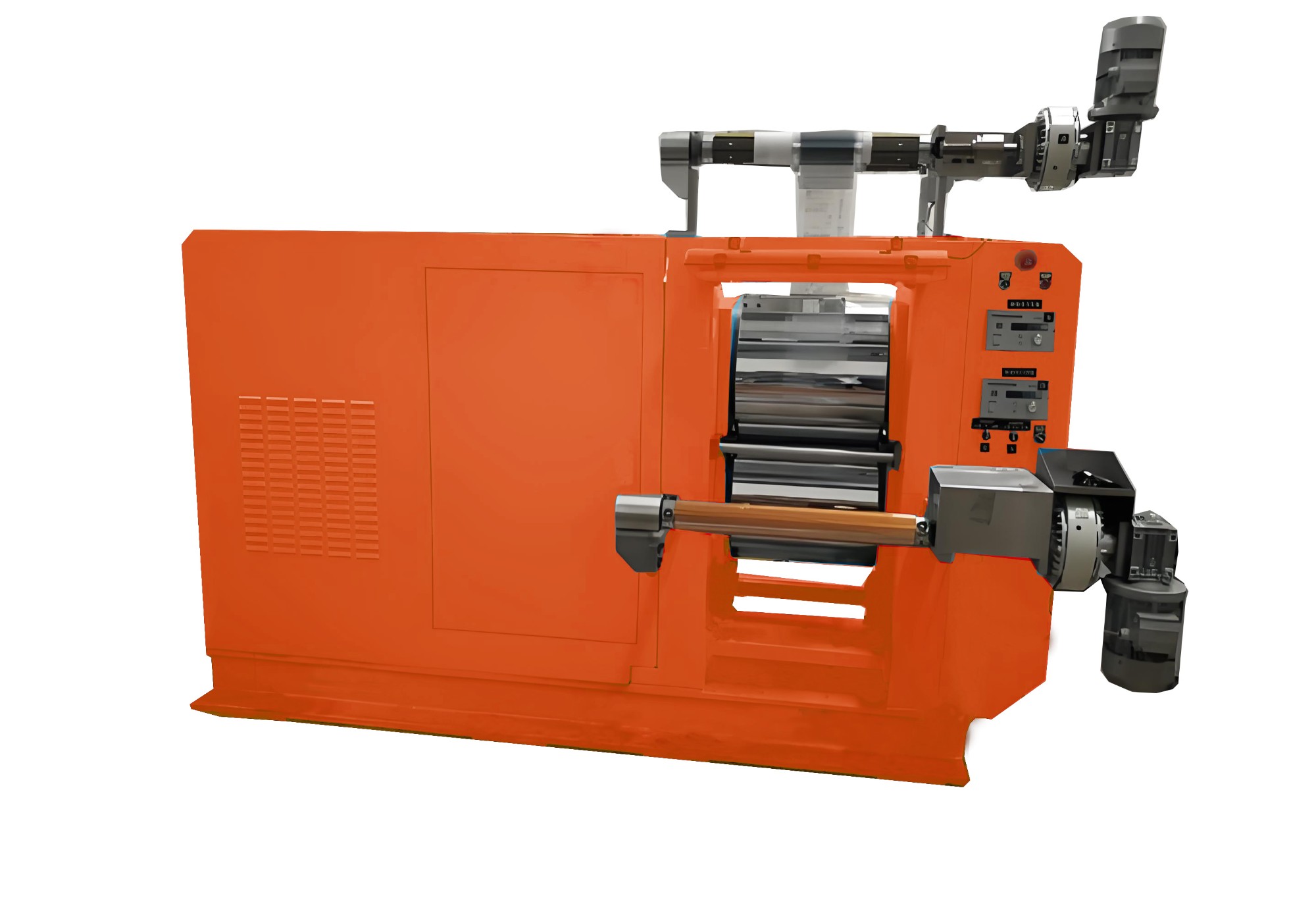

Two roll graphite thin rolling machine

Product Item : JSD-Y320A-1
Category： Rolling machine
Two roll graphite thin rolling machine
thermal silicone rolling machine
silicone rubber rolling machine
small rolling machine
INQUIRY EMAIL

The two roll rolling machine is suitable for rolling sheets of different materials such as tin sheets, aluminum sheets, battery electrodes, PV, PE, tin sheets, aluminum sheets, silicone rubber, thermal conductive silicone, etc. The material surface is made smoother and the thickness is more uniform by varying degrees of squeezing through the roller.

Stainless steel mesh rolling machine, rolling machine, thermal conductive silicone rubber rolling machine, silicone rubber rolling machine, small rolling machine, two roll graphite thin rolling machine

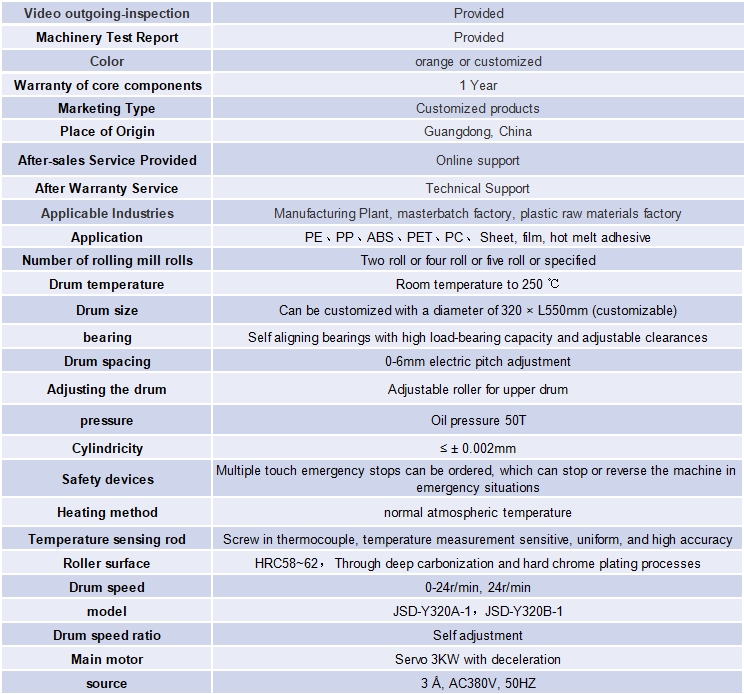

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Number of rolling mill rolls	Two roll or four roll or five roll or specified
Drum temperature	Room temperature to 250 ℃
Drum size	Can be customized with a diameter of 320 × L550mm (customizable)
bearing	Self aligning bearings with high load-bearing capacity and adjustable clearances
Drum spacing	0-6mm electric pitch adjustment
Adjusting the drum	Adjustable roller for upper drum
pressure	Oil pressure 50T
Cylindricity	≤ ± 0.002mm
Safety devices	Multiple touch emergency stops can be ordered, which can stop or reverse the machine in emergency situations
Heating method	normal atmospheric temperature
Temperature sensing rod	Screw in thermocouple, temperature measurement sensitive, uniform, and high accuracy
Roller surface	HRC58~62， Through deep carbonization and hard chrome plating processes
Drum speed	0-24r/min, 24r/min
model	JSD-Y320A-1，JSD-Y320B-1
Drum speed ratio	Self adjustment
Main motor	Servo 3KW with deceleration
source	3 Å, AC380V, 50HZ
