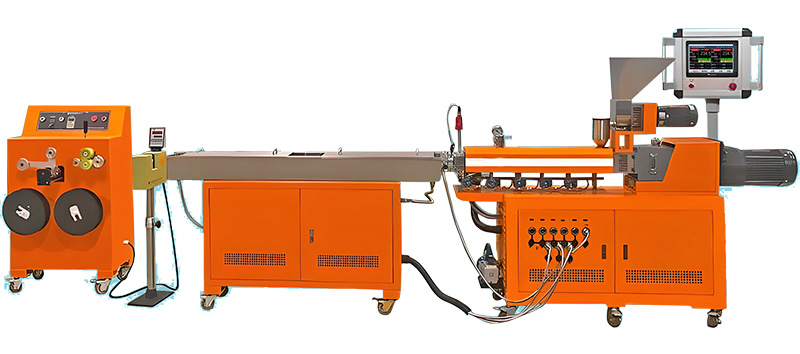

3D printing filament extrusion production line JSD-J025A-1
The screw precision extrusion 3D printing consumables production line consists of a screw extruder, a metering pump system, a mold, a cooling water tank, a traction system, a winding system, and a measurement and control system, forming a complete set of wire extrusion production lines. The unit has the characteristics of stable extrusion, good plasticization effect, high control accuracy, and convenient operation, making it an ideal experimental equipment with high precision and performance.

3D printing filament extrusion production line

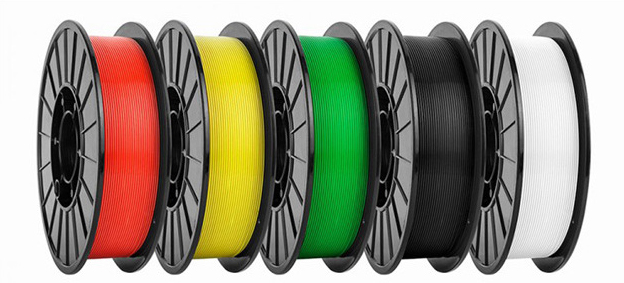

The equipment is used to produce 3D printing silk for various materials,

and different production lines can be customized according to customer requirements for special materials and configurations.
Applicable materials: PLA/ABS/PETG/WPC/TPU

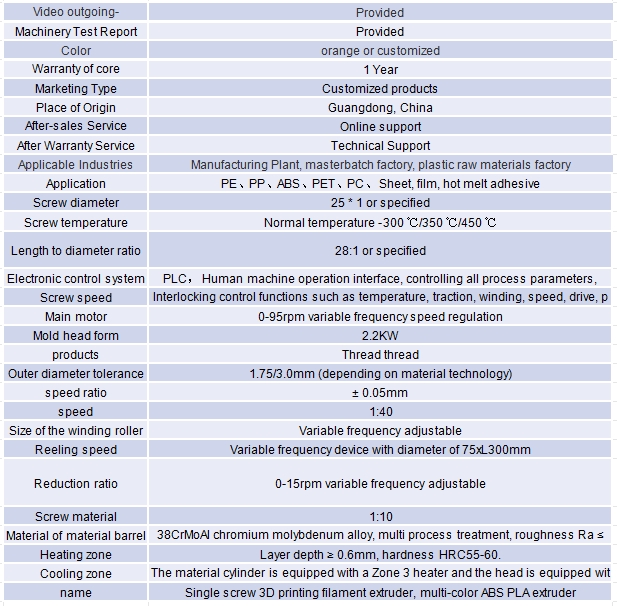

Key attributes

3D printing filament extrusion production line

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Screw diameter	25 * 1 or specified
Screw temperature	Normal temperature -300 ℃/350 ℃/450 ℃
Length to diameter ratio	28:1 or specified
Electronic control system	PLC， Human machine operation interface, controlling all process parameters,
Screw speed	Interlocking control functions such as temperature, traction, winding, speed, drive, pneumatic, braking, etc.
Main motor	0-95rpm variable frequency speed regulation
Mold head form	2.2KW
products	Thread thread
Outer diameter tolerance	1.75/3.0mm (depending on material technology)
speed ratio	± 0.05mm
speed	1:40
Size of the winding roller	Variable frequency adjustable
Reeling speed	Variable frequency device with diameter of 75xL300mm
Reduction ratio	0-15rpm variable frequency adjustable
Screw material	1:10
Material of material barrel	38CrMoAl chromium molybdenum alloy, multi process treatment, roughness Ra ≤ 0.4 μ m, nitriding
Heating zone	Layer depth ≥ 0.6mm, hardness HRC55-60.
Cooling zone	The material cylinder is equipped with a Zone 3 heater and the head is equipped with a Zone 2 heater, each with aluminum heat dissipation fins and covered with a safety hood.
name	Single screw 3D printing filament extruder, multi-color ABS PLA extruder
