Thermal conductive silicone calender

Product Item : JSD-Y201A-1
Category： Rolling machine
Three roll silicone rubber rolling machine
Thermal conductive silicone calender
silicone rubber rolling machine
small rolling machine
INQUIRY EMAIL

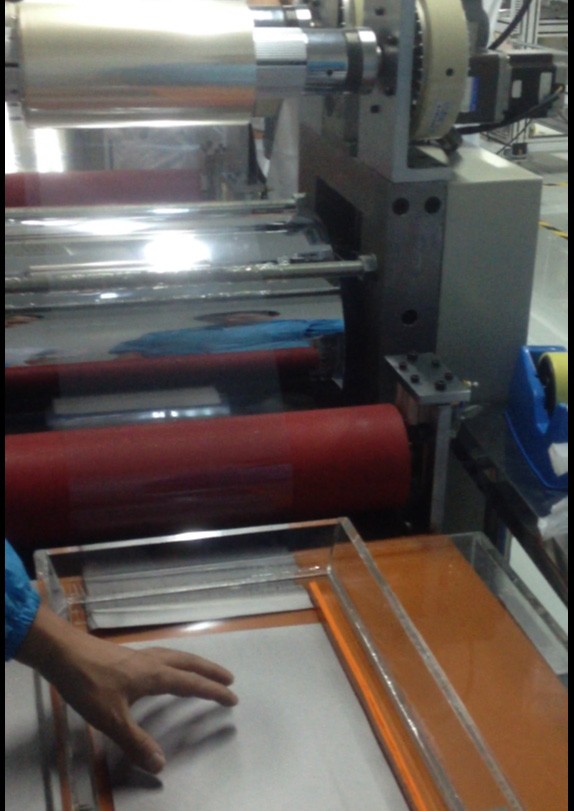

The two roll rolling machine is suitable for rolling sheets of different materials such as PV, PE, tin sheets, aluminum sheets, silicone rubber, thermal conductive silicone, etc. The material surface is made smoother and the thickness is more uniform by varying degrees of squeezing through the roller.

Adopting a PLC control system, it can effectively control the speed and drum clearance
Thermal conductive silicone calender

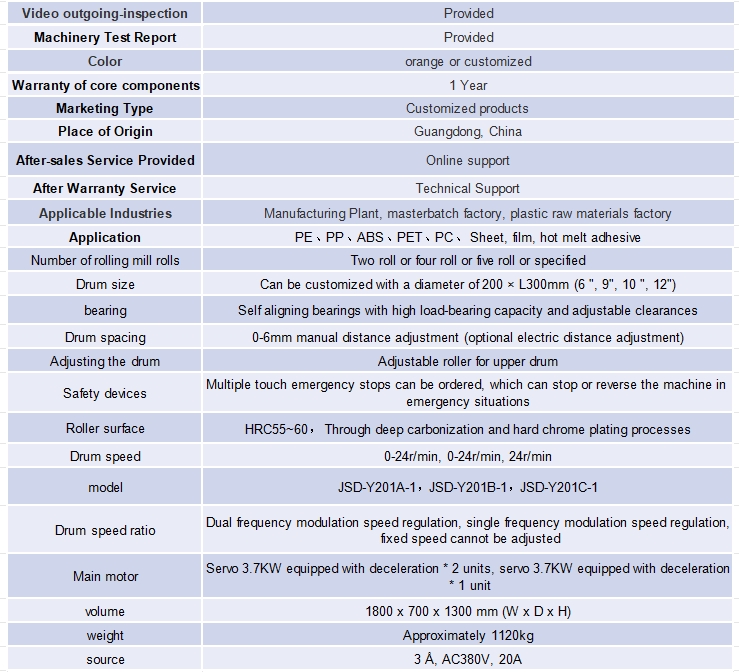

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Number of rolling mill rolls	Two roll or four roll or five roll or specified
Drum size	Can be customized with a diameter of 200 × L300mm (6 ", 9", 10 ", 12")
bearing	Self aligning bearings with high load-bearing capacity and adjustable clearances
Drum spacing	0-6mm manual distance adjustment (optional electric distance adjustment)
Adjusting the drum	Adjustable roller for upper drum
Safety devices	Multiple touch emergency stops can be ordered, which can stop or reverse the machine in emergency situations
Roller surface	HRC55~60， Through deep carbonization and hard chrome plating processes
Drum speed	0-24r/min, 0-24r/min, 24r/min
model	JSD-Y201A-1，JSD-Y201B-1，JSD-Y201C-1
Drum speed ratio	Dual frequency modulation speed regulation, single frequency modulation speed regulation, fixed speed cannot be adjusted
Main motor	Servo 3.7KW equipped with deceleration * 2 units, servo 3.7KW equipped with deceleration * 1 unit
volume	1800 x 700 x 1300 mm (W x D x H)
weight	Approximately 1120kg
source	3 Å, AC380V, 20A
