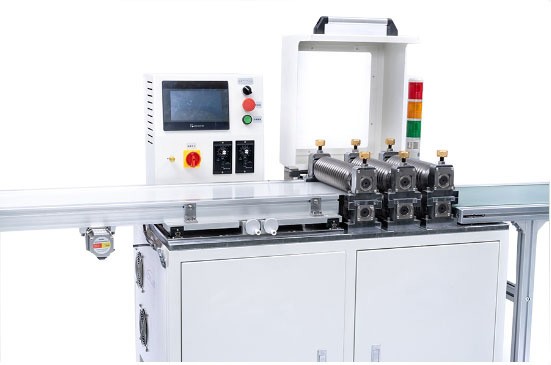

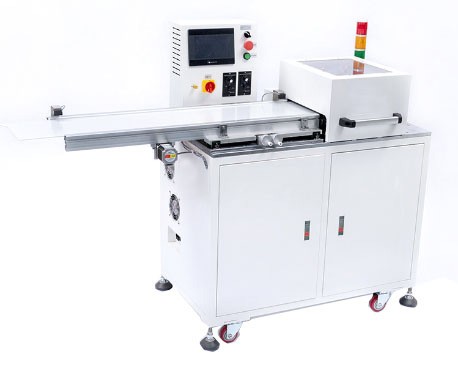

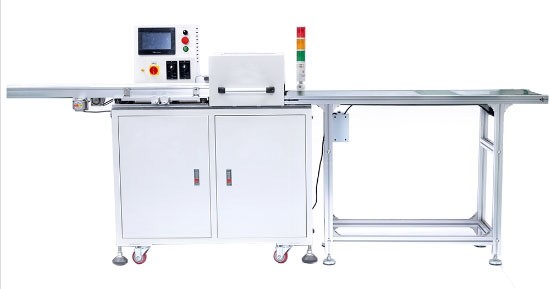

Multi blade automatic splitting machine

Suitable for cutting PCB boards, aluminum substrates, copper plates, and ceramic plates; Especially suitable for cutting precision SMD PCBA or thin plates, ensuring that sensitive SMD components and capacitors are not affected by stress, and minimizing potential quality risks of products. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LEDs, etc
Features of Multi group and Multi blade Automatic Splitting Machine:
1. Cutting and assembling a whole board in one go is 20 times more efficient than traditional cutting machines;
2. Can connect to the assembly line and achieve fully automatic unmanned operation;
3. Multiple safety protection devices;
4. Microcomputer human-machine interface, real-time monitoring of startup time, production capacity, alarm information, and automatic troubleshooting system;
5. Multiple sets of upper and lower knives are used for simultaneous segmentation, and the distance between the upper and lower knives can be accurately adjusted. The thickness of the partition board needs to meet the following requirements: 0.6MM-3.5MM;
6. Multiple sets of upper and lower knives are used for simultaneous segmentation, and adjustable foot cup casters are installed at the bottom of the equipment to facilitate movement. When not in motion, stable fixation is required.;
7. The gap between the upper and lower blades can be adjusted according to the V-CUT spacing of the PCB board, with an accuracy controlled at 0.1MM;

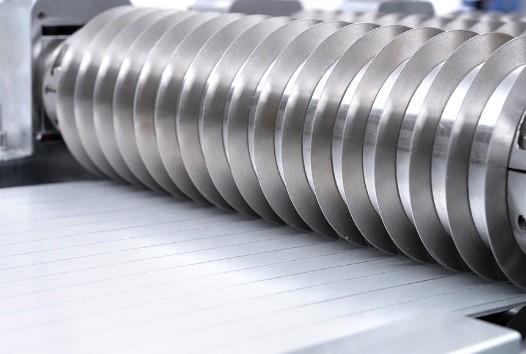

8. The blade is made of imported high-speed steel material and processed through multiple special processes, with low stress on the dividing plate.
9. Due to multiple cuts, the cutting process is very smooth, greatly improving the positioning ability of the V-CUT slot. Even for circuit boards with shallow V-CUT slots, there will be no situation where the V-CUT slot jumps out of the guide knife, avoiding defects.
