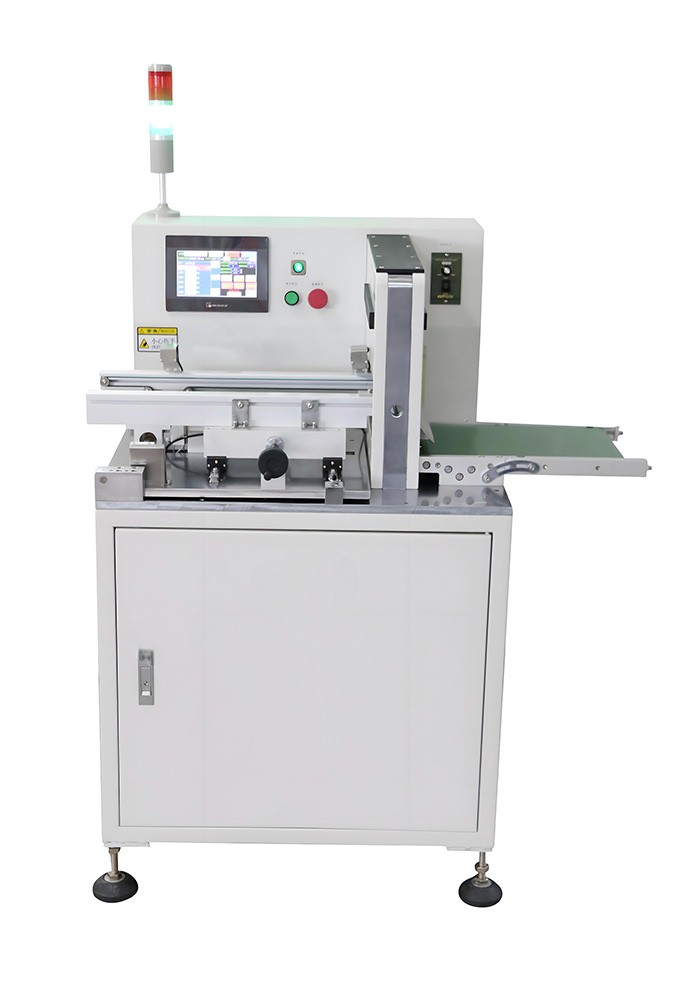

Automatic Knife Splitting Machine

  • Product Item : JSD-B030A-1
  • Category: PCB slitting machine
  • Multifunctional slitting machine
  • PCB Splitting and Swinging Integrated Machine
  • Saw blade slitting machine
  • Non metallurgical tool splitting machine
  • INQUIRY   EMAIL

Suitable for cutting PCB boards, aluminum substrates, copper plates, and ceramic plates; Especially suitable for cutting precision SMD PCBA or thin plates, ensuring that sensitive SMD components and capacitors are not affected by stress, and minimizing potential quality risks of products. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LEDs, etc
Features of online guillotine slitting machine:
1. Can be connected to an assembly line to achieve fully automatic board splitting without the need for manual placement, and the cut PCB flows out through the assembly line.
2. Changing products is fast and time-saving, just switch programs.
3. Micro computer control, human-machine exchange interface.
4. Multiple security control modes: structural foolproof, light curtain control, software control.
5. PCB boards with V-CUT are suitable for this machine.
6. Data monitoring system: startup time monitoring, production capacity monitoring, fault monitoring, etc.
7. When cutting, the micro stress on the components is around 200 to avoid tin cracking and prevent damage to precision parts.
8. Splitting work method: feeding by the feeding machine or manually feeding to the assembly line - the machine divides the boards according to the expected program - after the boards are divided, the products and waste materials are sucked into the assembly line and transported together.


Automatic Knife Splitting Machine

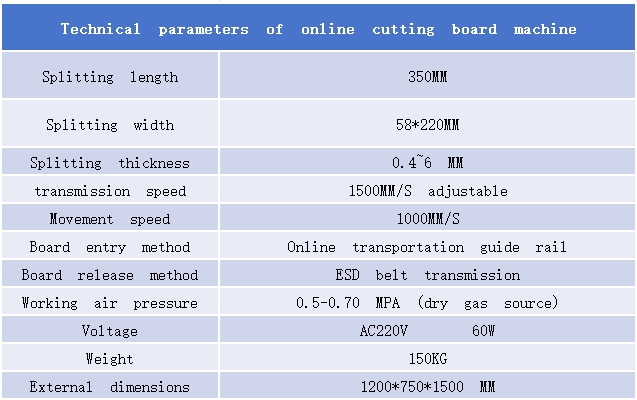

 Technical parameters of online cutting board machine


Technical parameters of online cutting board machine
Splitting length 350MM
Splitting width 58*220MM
Splitting thickness 0.4~6 MM
transmission speed 1500MM/S adjustable
Movement speed 1000MM/S
Board entry method Online transportation guide rail
Board release method ESD belt transmission
Working air pressure 0.5-0.70 MPA (dry gas source)
Voltage AC220V 60W
Weight 150KG
External dimensions 1200*750*1500 MM
