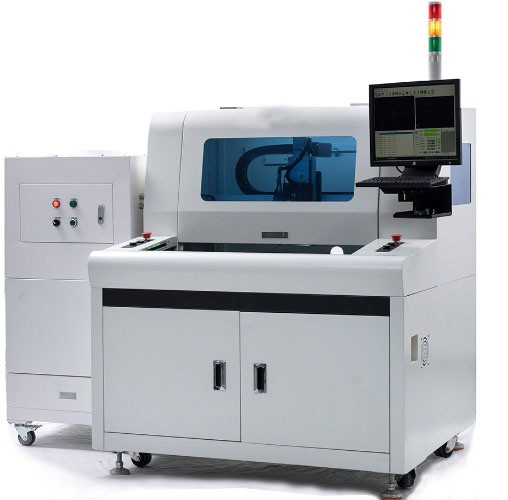

Composite Splitting Machine

Suitable for composite PCB slitting connected to V-slots and stamp holes, especially for PCB slitting of parts crossing V-slots; Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LEDs, etc.
Features of the composite slitting machine (milling cutter+saw blade):
1. Stress free cutting, with a minimum stress of around 200 μ e on the dividing plate
2. MARK point precise positioning, short programming time, simple and fast operation
3. Visual high-definition industrial camera, automatic camera
4. High speed dual spindle, milling cutter and saw blade
5. Dual station efficient cutting
6. Windows/Linux system, Chinese English interface
7. Suitable for PCB cutting with a thickness of 0.3-6.0mm, V-groove, point connection, and surface connection
8. The most advanced real-time cutting and dust removal technology
9. Completely solve the cross V-slot cutting of components
10. After splitting, the cutting surface is flat and bright
11. Solve the problem of machine and wire replacement required for the mixed board (stamp hole, V-cut slot)
Composite Splitting Machine (Milling Knife+Saw Knife) Mark Positioning Correction System:
It can make wire changing and fixture replacement more concise and accurate, and effectively prevent products from being cut off due to boards not being placed in place or mixed materials during online production. Due to the possibility of double-sided processing in your company's products, the standard MARK point is only on one side, so the correction action is essential. The usable Mark points are usually irregularly shaped and have an irregular appearance; It is prone to errors or compensation offset. Based on our previous experience, our company has significantly improved the recognition pass rate and compensation accuracy by using intelligent camera upgrade algorithms and special light sources.

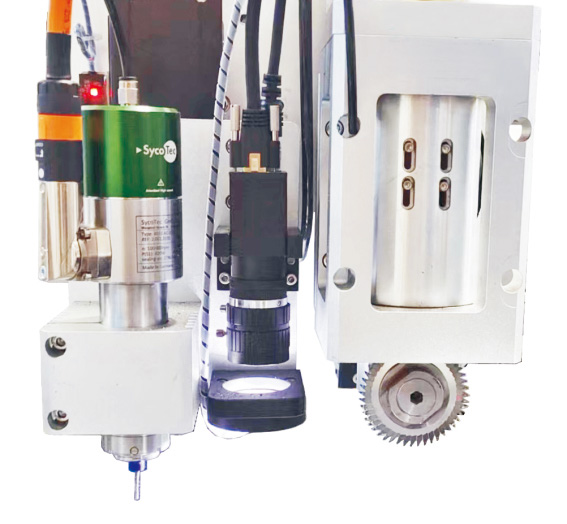

Composite Splitting Machine (Milling Knife+Saw Knife) Dual Spindle Picture:

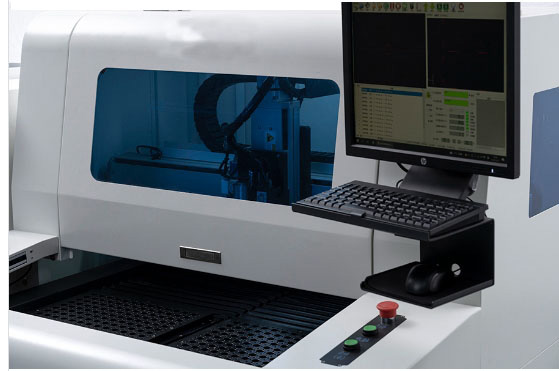

Composite Splitting Machine (Milling Knife+Saw Knife) Vision System:

High pixel color digital camera and high magnification lens, capable of assisting program teaching and editing simulation functions, automatic MARK positioning and correction system.

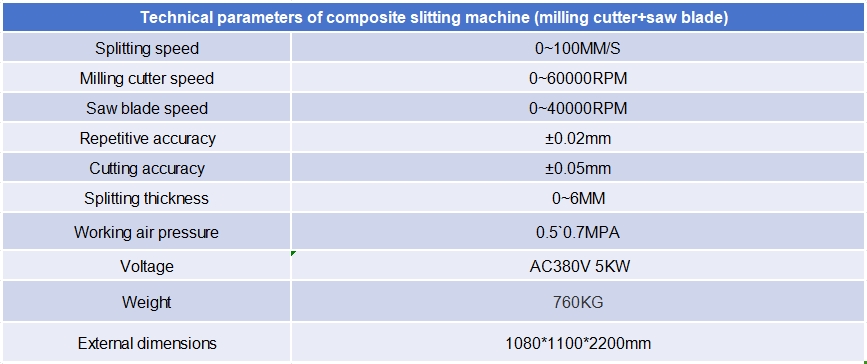

Technical parameters of composite slitting machine (milling cutter+saw blade)
Splitting speed	0~100MM/S
Milling cutter speed	0~60000RPM
Saw blade speed	0~40000RPM
Repetitive accuracy	±0.02mm
Cutting accuracy	±0.05mm
Splitting thickness	0~6MM
Working air pressure	0.5`0.7MPA
Voltage	AC380V 5KW
Weight	760KG
External dimensions	1080*1100*2200mm
