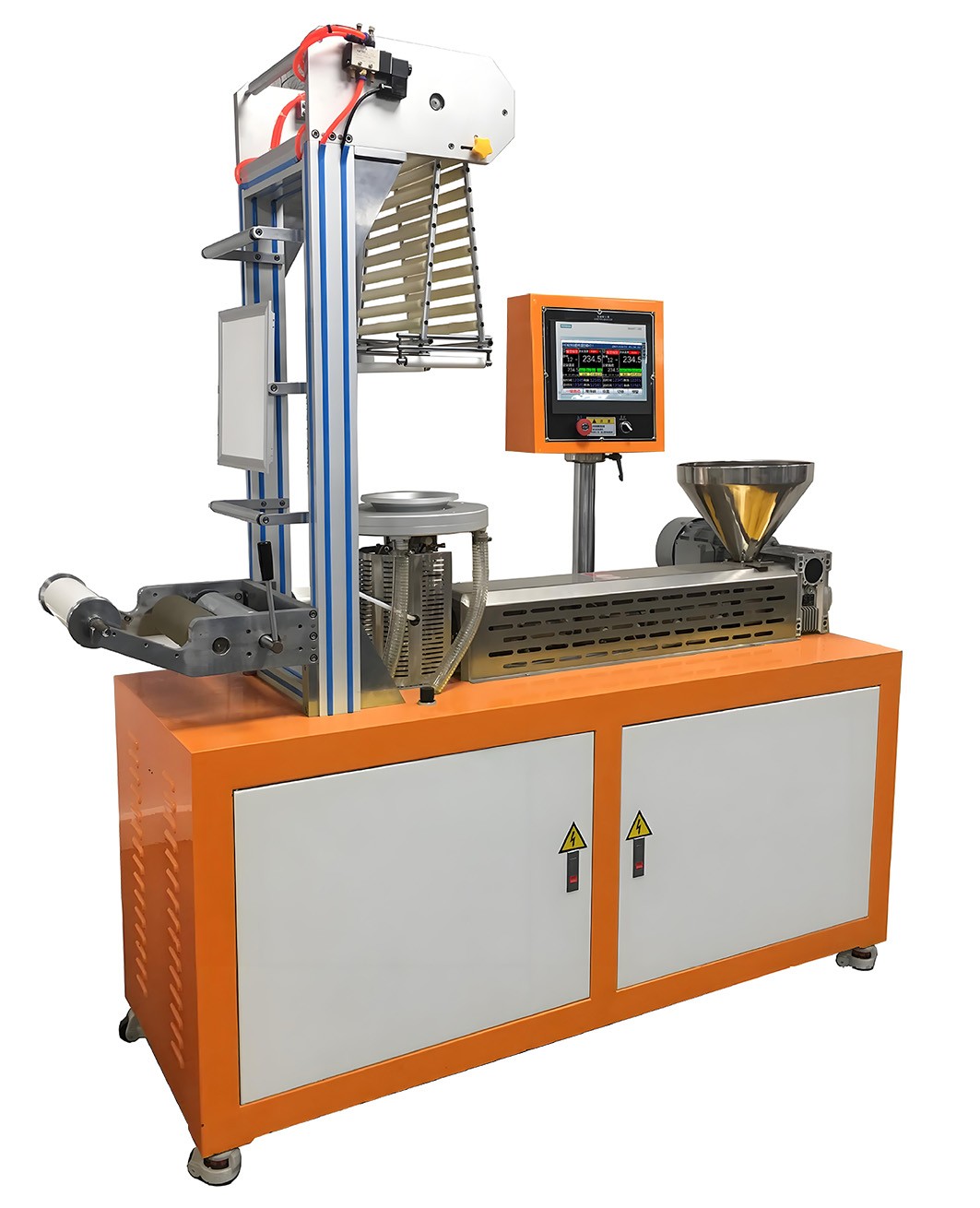

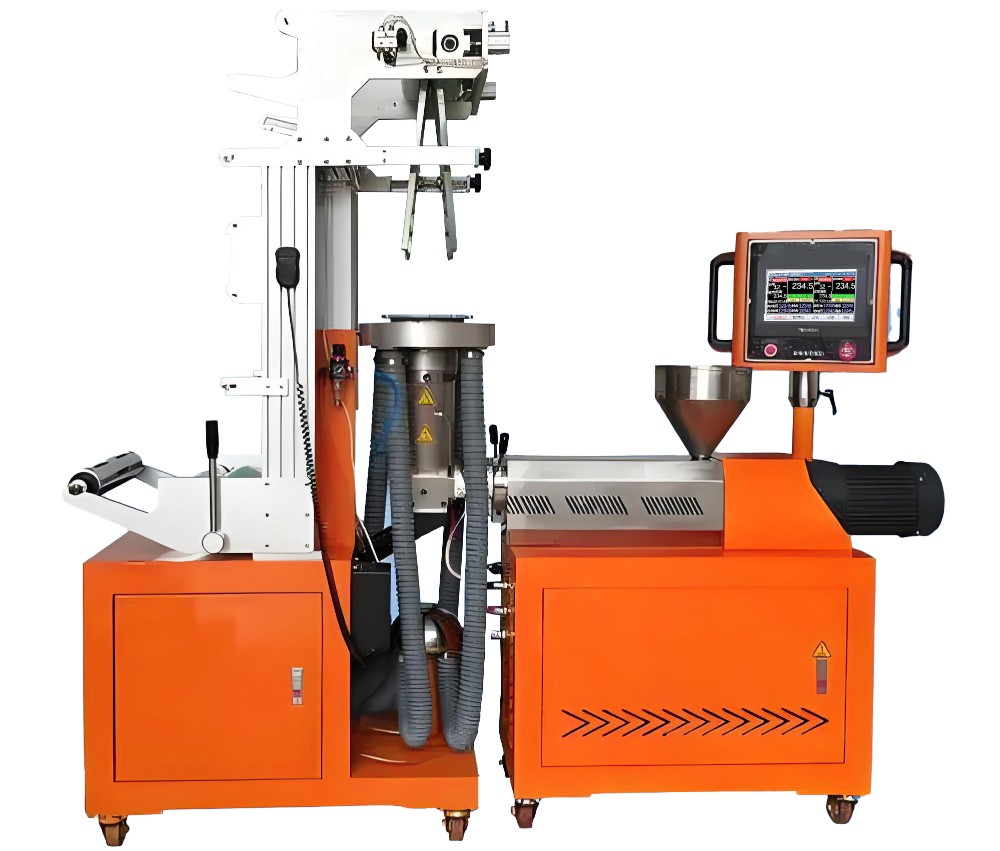

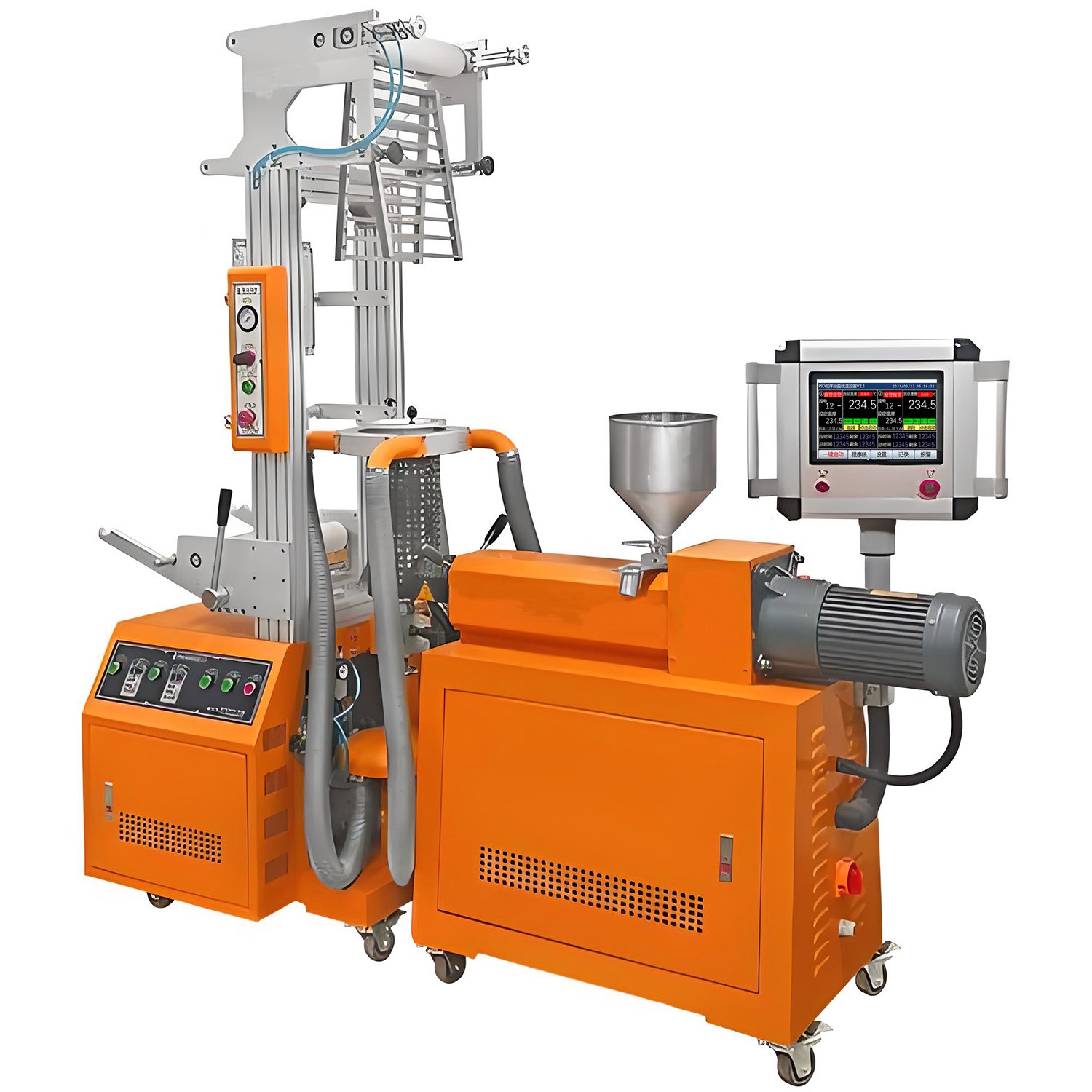

New Automatic Mini Blown Film Extrusion Machine for PE PP PET PVC Plastic Processing for Manufacturing Plants with Core Motor

New Automatic Mini Blown Film Extrusion Machine for PE PP PET PVC Plastic Processing for Manufacturing Plants with Core Motor

Product Item : JSD-C041A-1
Category： Blowing film machine
PE film blowing machine
PLA film blowing machine
PBAT film blowing machine
high and low pressure polyethylene film blowing machine
INQUIRY EMAIL

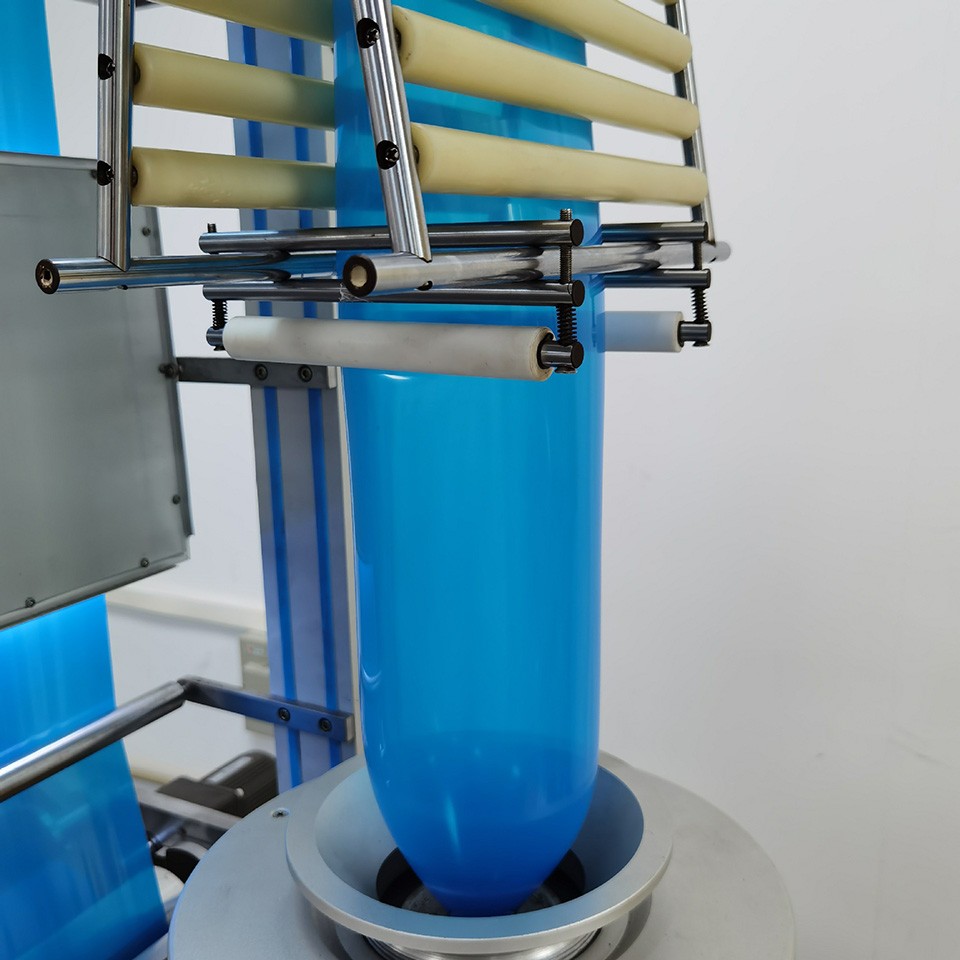

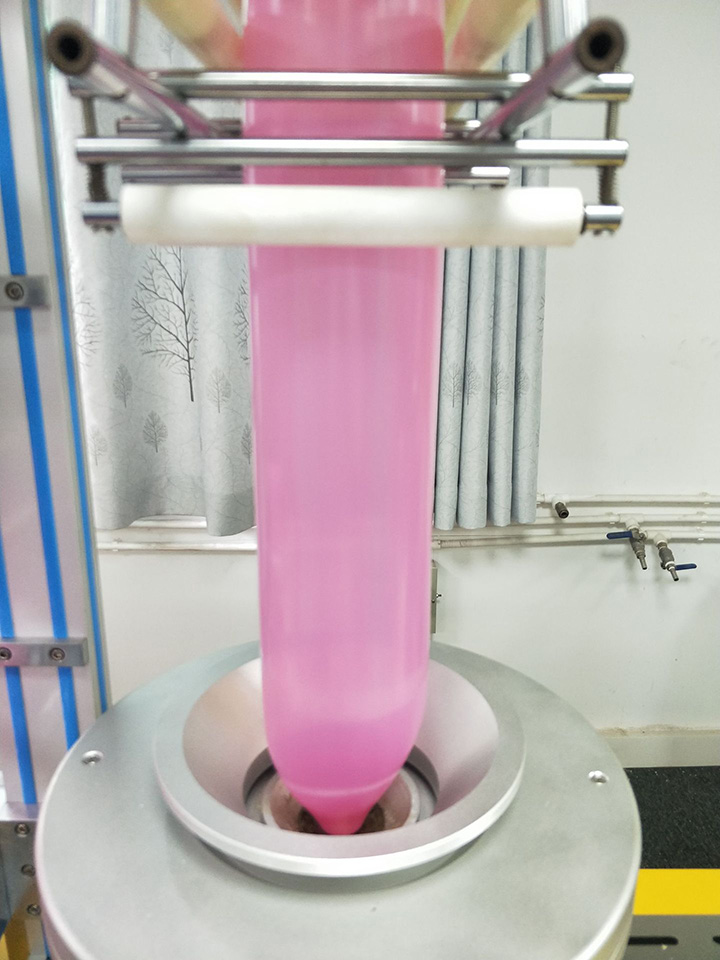

The extrusion blown film machine is a process in which plastic melt is continuously extruded through the mold mouth through a single screw conveyor at the processing temperature of raw materials, under the action of a certain shear force. It is expanded by compressed air, cooled by a wind ring, and pulled by a frequency converter to obtain a double diameter plastic film. Mainly used to detect the feasibility of blowing polymer materials and the gum condition inside the material, as well as the dispersion of colored dispersions, control mixtures, and extrudates. High and low pressure polyethylene blowing machine

Product Application

				1) Application: PE, modified PP, modified PET, and other plastic materials which could be blown;

2) New material formula development;

3) Film blowing property test;

4) Master batch color dispersion test;

5) Optimization of blown film production technology;

					6) Production of simple layer tubular film blowing..

Laboratory blow molding machine

Main Features

					1) Specially manufactured screw and barrel to guarantee precision and quality;

2) International brand variable speed control motor to precisely control the screw rotating speed;

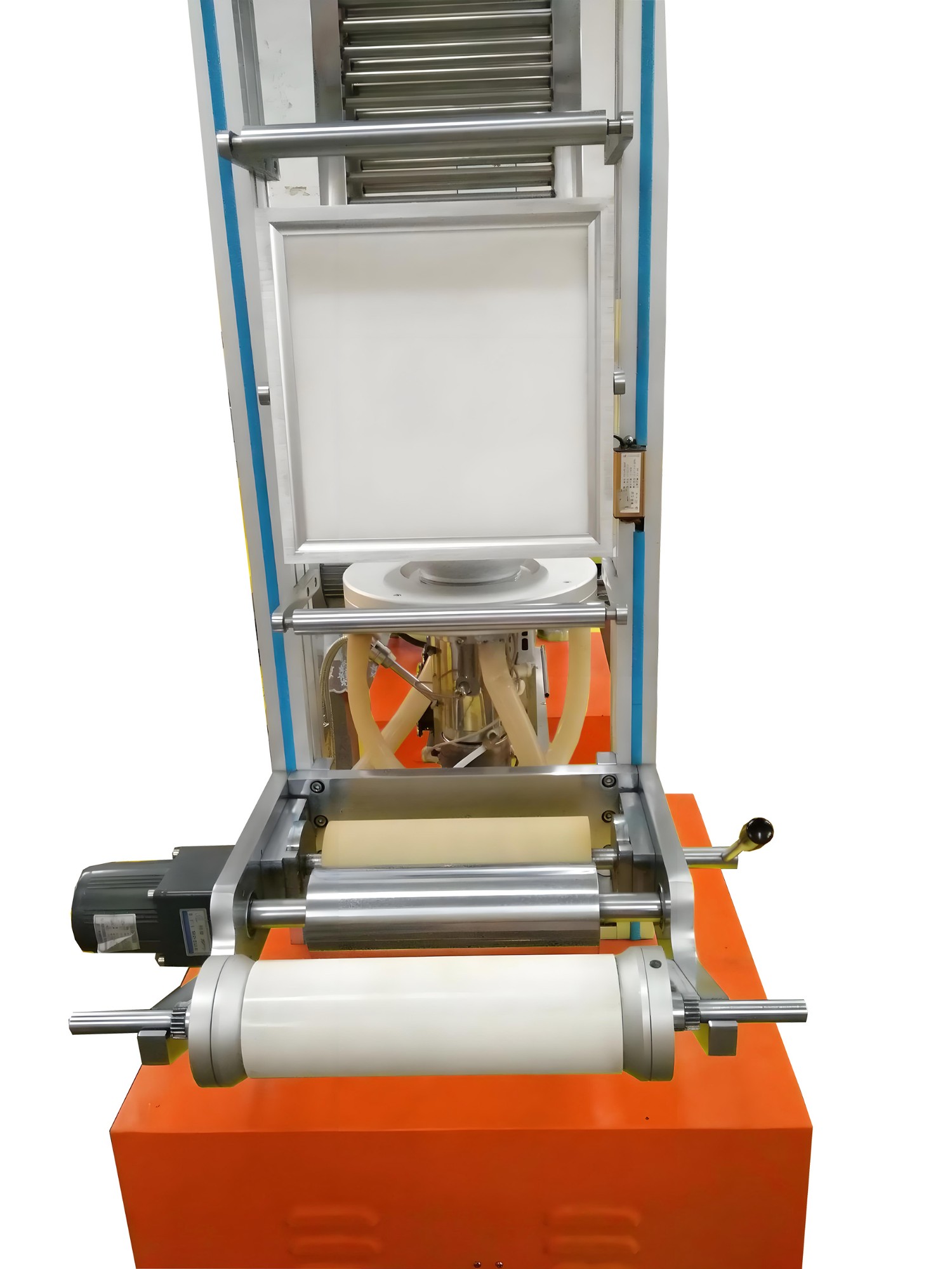

3) The blown film frame can be electrically lifted, which is easy to lead the film and adjust the production technology;

4) Equipped with retractable unit for the blown film frame to easily transport and move;

5) SIEMENS touching screen PLC control system;

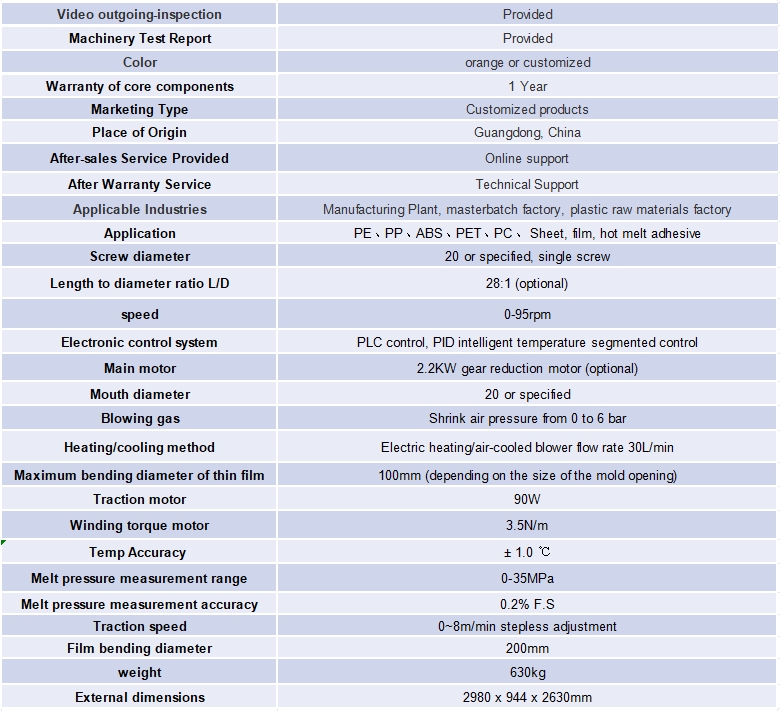

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Screw diameter	20 or specified, single screw
Length to diameter ratio L/D	28:1 (optional)
speed	0-95rpm
Electronic control system	PLC control, PID intelligent temperature segmented control
Main motor	2.2KW gear reduction motor (optional)
Mouth diameter	20 or specified
Blowing gas	Shrink air pressure from 0 to 6 bar
Heating/cooling method	Electric heating/air-cooled blower flow rate 30L/min
Maximum bending diameter of thin film	100mm (depending on the size of the mold opening)
Traction motor	90W
Winding torque motor	3.5N/m
Temp Accuracy	± 1.0 ℃
Melt pressure measurement range	0-35MPa
Melt pressure measurement accuracy	0.2% F.S
Traction speed	0~8m/min stepless adjustment
Film bending diameter	200mm
weight	630kg
External dimensions	2980 x 944 x 2630mm
