PE Plastic Processed and Extrusion Blow Moulding Type ABC 3 Layer Multi-layer Film Blowing Machine China machine

Used for LDPE/CPE/TPE/TPU/PET PVC material screws

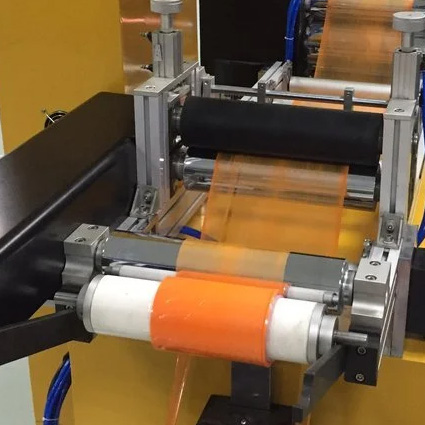

Extrusion and cooling: The casting machine heats and melts plastic particles or particle mixtures through an extrusion system, and extrudes the molten plastic into thin films through screws. Subsequently, the extruded film is rapidly cooled through a cooling system to solidify it.
Coating and composite: After cooling, the casting machine uses a coating device to coat other materials (such as paper, aluminum foil, etc.) onto the surface of the film, achieving coating or composite of the film. The coating device can be adjusted as needed to control the thickness and uniformity of the coating.
Control system: The casting machine is usually equipped with a control system to monitor and adjust parameters such as extrusion temperature, coating speed, cooling speed, etc. This helps to ensure the quality and consistency of the coating or composite.

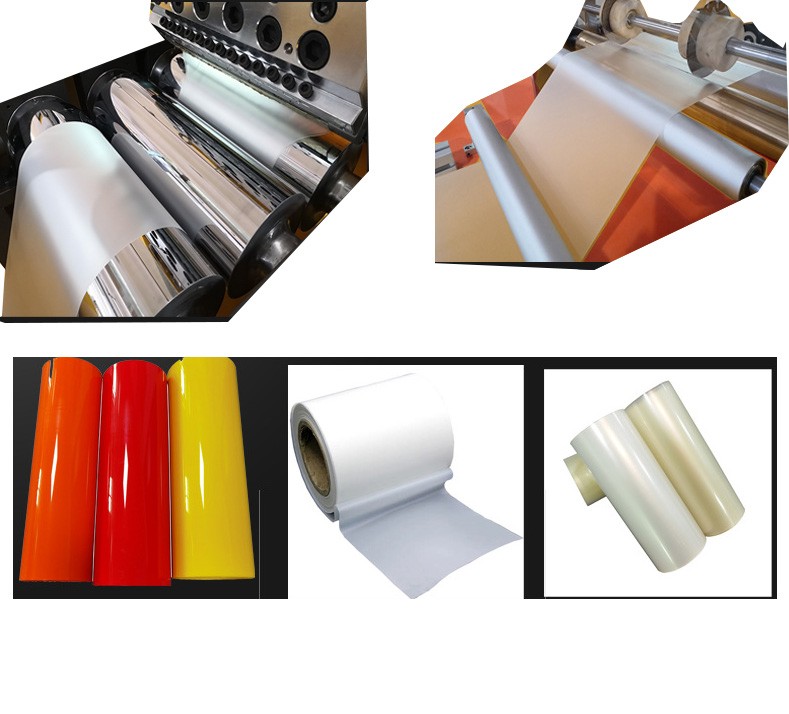

Multi functional application: The casting machine is widely used in the packaging industry, such as food packaging, pharmaceutical packaging, industrial packaging, etc. It can manufacture various types of coated or composite films to meet the needs of different industries.
It should be noted that when using the casting machine, operating procedures and safety precautions should be followed to ensure the normal operation of the equipment and the safety of personnel. In addition, depending on specific plastic materials and coating/composite requirements, it may be necessary to choose the appropriate casting machine model and configuration.

Product Application

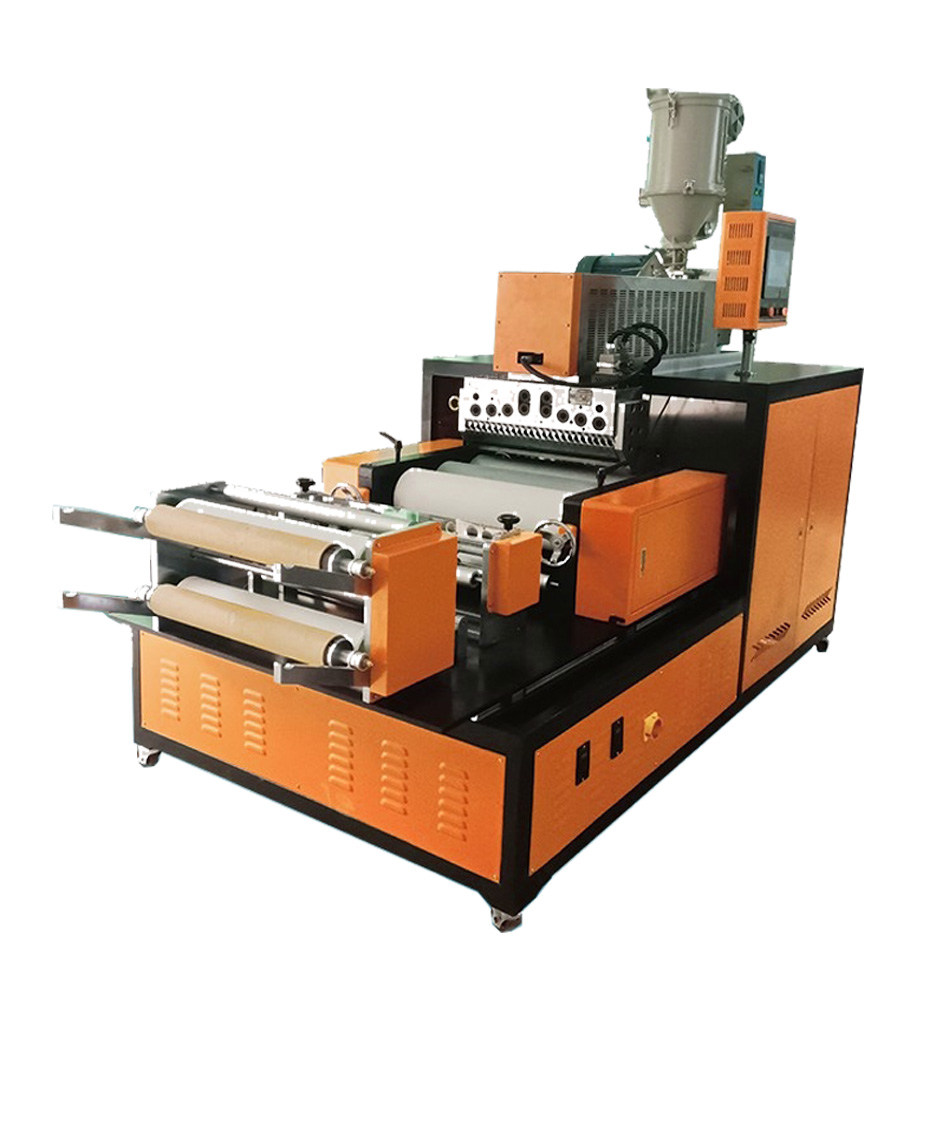

This mini film blowing machine is suitable for the scientific institution, the college and the production factory lab, also can be used for small production.

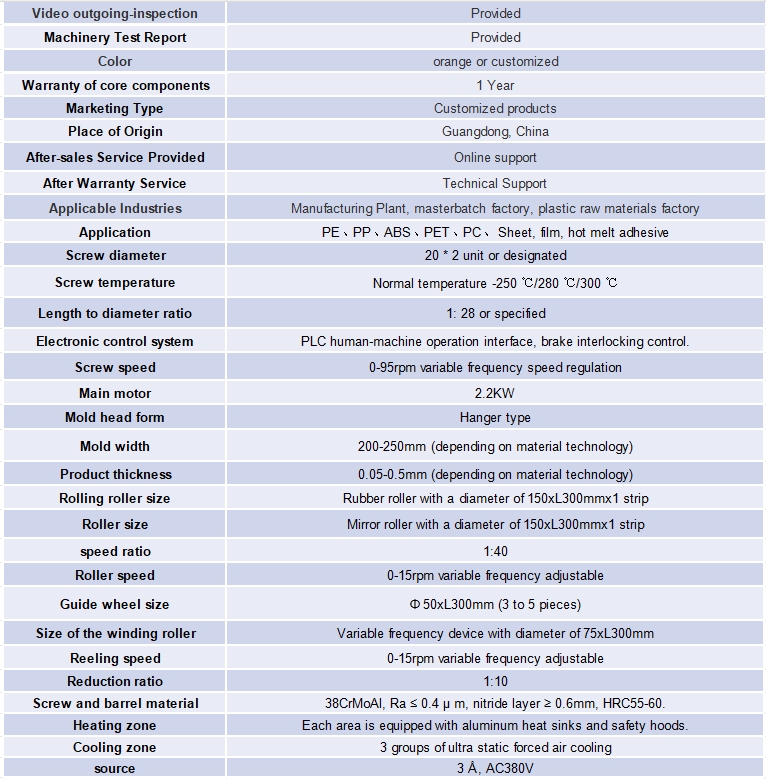

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Screw diameter	20 * 2 unit or designated
Screw temperature	Normal temperature -250 ℃/280 ℃/300 ℃
Length to diameter ratio	1: 28 or specified
Electronic control system	PLC human-machine operation interface, brake interlocking control.
Screw speed	0-95rpm variable frequency speed regulation
Main motor	2.2KW
Mold head form	Hanger type
Mold width	200-250mm (depending on material technology)
Product thickness	0.05-0.5mm (depending on material technology)

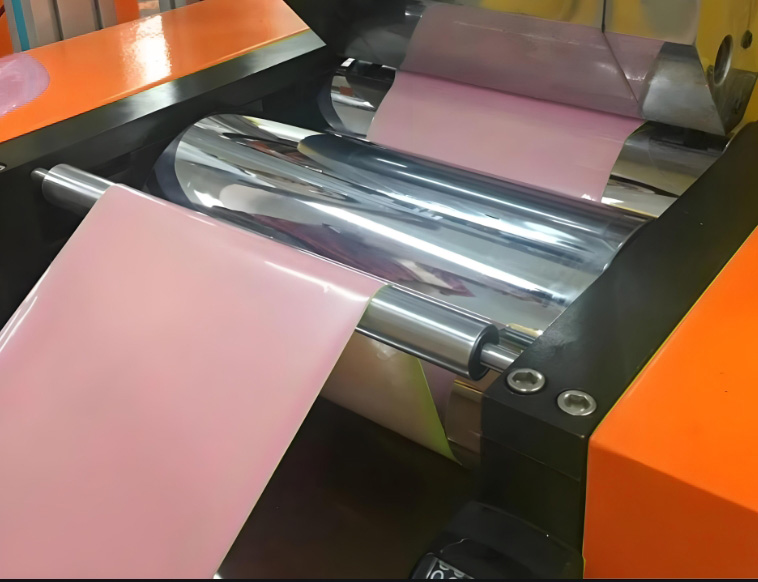

Rolling roller size	Rubber roller with a diameter of 150xL300mmx1 strip
Roller size	Mirror roller with a diameter of 150xL300mmx1 strip
speed ratio	1:40
Roller speed	0-15rpm variable frequency adjustable

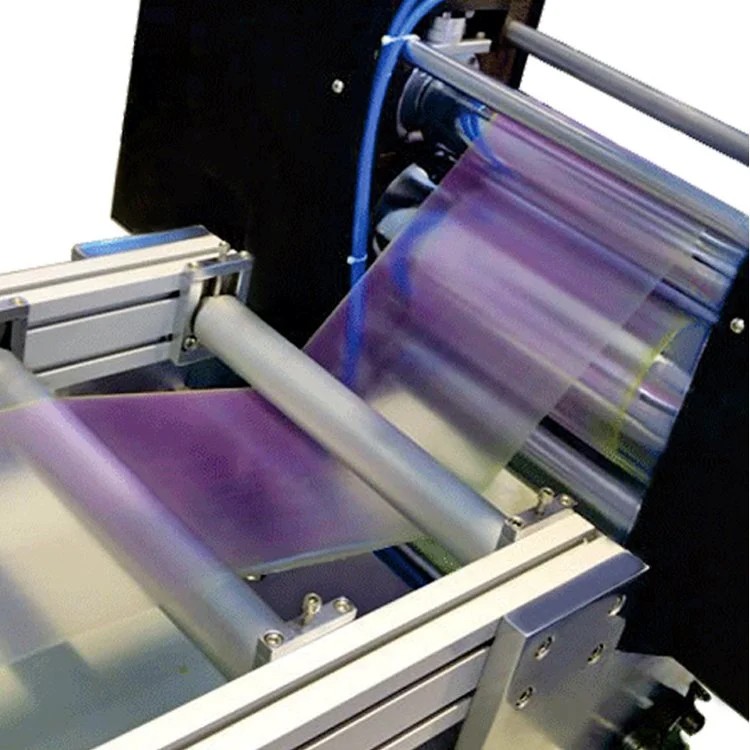

Guide wheel size	Φ 50xL300mm (3 to 5 pieces)
Size of the winding roller	Variable frequency device with diameter of 75xL300mm
Reeling speed	0-15rpm variable frequency adjustable
Reduction ratio	1:10
Screw and barrel material	38CrMoAl, Ra ≤ 0.4 μ m, nitride layer ≥ 0.6mm, HRC55-60.
Heating zone	Each area is equipped with aluminum heat sinks and safety hoods.
Cooling zone	3 groups of ultra static forced air cooling
source	3 Å, AC380V
