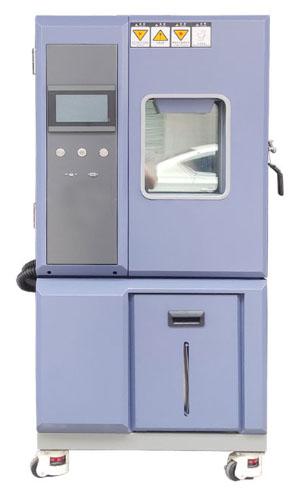

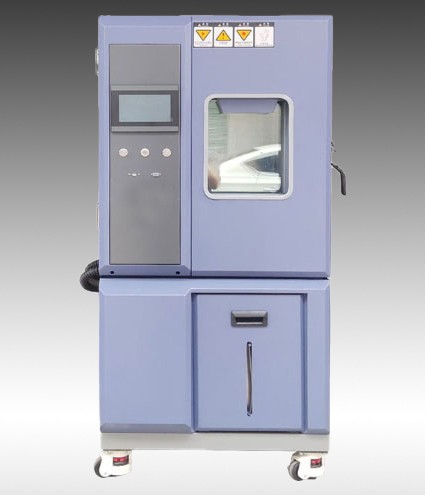

High and low temperature test chamber

Product Item : JSD-T104A-1
Category： Detection equipment
High and low temperature test chamber
Explosion constant temperature and humidity test chamber
temperature humidity test chamber
Constant temperature and humidity chamber
INQUIRY EMAIL

A high and low temperature laboratory is a type of laboratory that has both high and low temperature functions. It can also alternate between high and low temperatures and program cyclic experiments. High and low temperature laboratories, also known as high and low temperature laboratories, high and low temperature constant temperature chambers, high and low pressure circulation chambers, etc. Mainly used for complex high and low temperature testing, such as hot testing, cold testing, and dry resistance testing, to monitor the reliable performance indicators of products. Applicable to third-party quality inspection and measurement, scientific research institutions, laboratories of higher education institutions, quality inspection departments of enterprises and institutions, as well as various industries of electrical and electronic components, finished or semi-finished products.
The high and low temperature experimental box mainly consists of a control panel, distribution panel, insulation layer, air supply fan, heater, and freezer combination. The main specifications can be divided into 6 standard sizes and 10 specifications with different conditions.
The controller can be connected to the computer through a LAN interface, and users can design programs, collect test data and records, call program execution, remotely control machine switches, USB and other functions on the computer screen.
Adopting multi wing air supply fans, strong air circulation, avoiding dead corners, and ensuring uniform indoor temperature distribution.
GB/T10589-1989 Technical Conditions for Low Temperature Test Chambers, GB/T10592-1989 Technical Conditions for High and Low Temperature Test Chambers, and GB2423.1-89 Low Temperature Tests Aa and Ab
MIL-STD810D Method 502.2, GB/T2423.4-93 (MIL-STD810)

name	High and low temperature test chamber
Inner cavity (L)	80			80			150				408			1000
Studio (WxDxH)	400x400x500			500x500x600			600x500x750				800x600x850			1000x1000x1000
Outer box (WxDxH)	600x1140x1530			700x1530x1630			800x1530x1800				1000x1630x1900			1200x1930x2080
Window (WxH)	210x300			210x300			290x420				290x500			290x500
Minimum temperature (℃)	-20	-40	-70	-20	-40	-70	-20		-40	-70	-20	-40	-70	-20	-40
Noise (dB)	65	65	68	65	65	68	65		<70	<70	65	<70	<70	<70	<70
Power (KW)	2.5	3	4	3.5	4	5	4.5		5	7.5	5	5.5	7.5	8.5	10.5
Voltage AC (V)	220			220			380				380			380
Weight (kg)	260			300			400				520			700
environment	The temperature requirement for air-cooled environment is+5~+30 ℃/the temperature requirement for water-cooled environment is+5~+40 ℃ (water-cooled requires installation of a water tower or ice water machine).
wind speed	≤1.7m/s
load	≤300W										≤600W
Temperature performance indicators
temperature range	A：-40℃~+150℃ B:-20℃~+150℃ D:-70℃~+150℃
Temperature uniformity	≤±1.0℃（-40℃~+100℃/-70℃~+100℃）；≤±1.5℃（-40℃~+150℃/-70℃~+150℃）。
Temperature deviation	≤±1.0℃（-40℃~+100℃/-70℃~+100℃）；≤±1.5℃（-40℃~+150℃/-70℃~+150℃）。
Temperature fluctuation	≤±0.3℃（≤±0.5℃，按GB/T5170-1996）。
heating rate	+Heating rate from 25 ℃ to+150 ℃: 0.1-3 ℃/min with adjustable linear slope; (Temperature rate of 4-25 ℃/min linear/nonlinear).
cooling rate	+Cooling rate from 150 ℃ to 0 ℃: 0.1-2.5 ℃/min with adjustable linear slope+ Cooling rate from 150 ℃ to -40 ℃: 0.1-1.5 ℃/min with adjustable linear slope+ Cooling rate from 25 ℃ to -70 ℃: average ≥ 1.0 ℃/min;; (Temperature rate of 2-25 ℃/minute, linear/nonlinear, special conditions require customization)。
Standard configuration	One observation window (double-layer hollow tempered conductive glass); One test hole with a diameter of 50/100mm (located on the left); Sample rack with 2 layers; 1 photography light (LED strip) inside the box; 4 small casters; 1 power cord.
Test standards	1、GB/T 2423.1 Low temperature test method							2、GJB 150.3 High Temperature Test
temperature range	3、GB/T 2423.2 High temperature test method							4、GJB 150.4 Low Temperature
