  • Lab Mini Film Extruder Machine Biodegradable PLA Film Blowing Machine HDPE LDPE Blown Film Machine
  • Lab Mini Film Extruder Machine Biodegradable PLA Film Blowing Machine HDPE LDPE Blown Film Machine
  • Lab Mini Film Extruder Machine Biodegradable PLA Film Blowing Machine HDPE LDPE Blown Film Machine
  • Lab Mini Film Extruder Machine Biodegradable PLA Film Blowing Machine HDPE LDPE Blown Film Machine
Lab Mini Film Extruder Machine Biodegradable PLA Film Blowing Machine HDPE LDPE Blown Film MachineLab Mini Film Extruder Machine Biodegradable PLA Film Blowing Machine HDPE LDPE Blown Film MachineLab Mini Film Extruder Machine Biodegradable PLA Film Blowing Machine HDPE LDPE Blown Film MachineLab Mini Film Extruder Machine Biodegradable PLA Film Blowing Machine HDPE LDPE Blown Film Machine

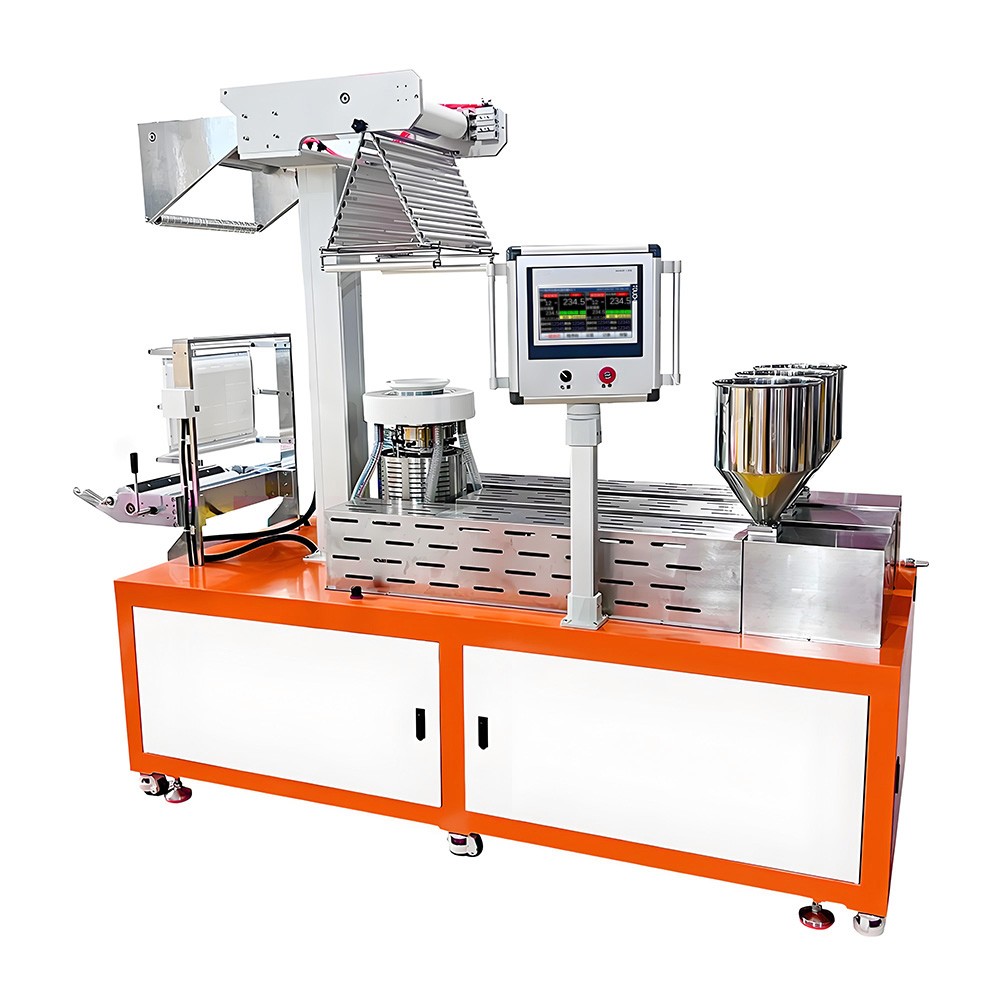

Lab Mini Film Extruder Machine Biodegradable PLA Film Blowing Machine HDPE LDPE Blown Film Machine

  • Product Item : JSD-C040A-1
  • Category: Blowing film machine
  • PE film blowing machine
  • PLA film blowing machine
  • PBAT film blowing machine
  • high and low pressure polyethylene film blowing machine
  • INQUIRY   EMAIL

Extrusion blown film is a process in which the plastic melt is continuously extruded through the mold mouth through a single screw conveyor at the processing temperature of the raw material, under the action of a certain shear force. It is then expanded by compressed air, cooled by a wind ring, and pulled by a frequency converter to obtain a double diameter plastic film. Mainly used to detect the feasibility of blowing film on polymer materials and the gum condition inside the materials, as well as the dispersion of colored dispersions, control mixtures, and extrudates
Product Performance of Small Film Blowing Machine Experimental Line
*Touch screen and Siemens PLC centralized control system, highly intelligent, easy to operate
*The traction roller is independently driven by a branded motor
*Hard chrome plating and mirror polishing treatment on the surface of the traction roller
*Constant tension winding
Application scope of small film blowing machine experimental line
*Material blowing film performance testing
*Dispersion performance test of color masterbatch
*Optimization of blown film production process parameters
*Research on the Blow Film Forming Performance of Materials
*Research on the dispersibility of pigments



Blowing film machine

Laboratory multi-layer film blowing machine


Key attributes

Laboratory multi-layer film blowing machine

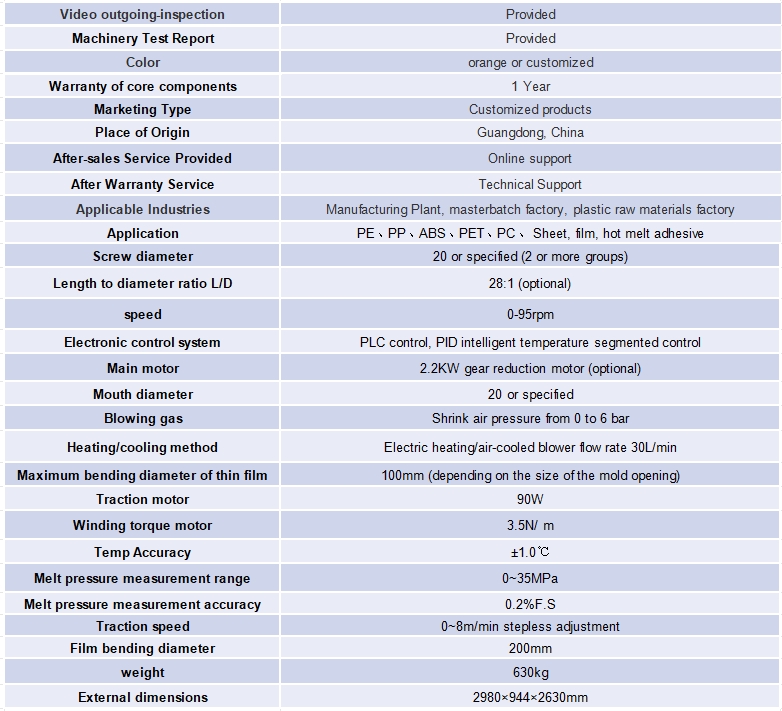

Video outgoing-inspection Provided
Machinery Test Report Provided
Color orange or customized
Warranty of core components 1 Year
Marketing Type Customized products
Place of Origin Guangdong, China
After-sales Service Provided Online support
After Warranty Service Technical Support
Applicable Industries Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application PEPPABSPETPC Sheet, film, hot melt adhesive
Screw diameter 20 or specified (2 or more groups)
Length to diameter ratio L/D 28:1 (optional)
speed 0-95rpm
Electronic control system PLC control, PID intelligent temperature segmented control
Main motor 2.2KW gear reduction motor (optional)
Mouth diameter 20 or specified
Blowing gas Shrink air pressure from 0 to 6 bar
Heating/cooling method Electric heating/air-cooled blower flow rate 30L/min
Maximum bending diameter of thin film 100mm (depending on the size of the mold opening)
Traction motor 90W
Winding torque motor 3.5N/ m
Temp Accuracy ±1.0
Melt pressure measurement range 0~35MPa
Melt pressure measurement accuracy 0.2%F.S
Traction speed 0~8m/min stepless adjustment
Film bending diameter 200mm
weight 630kg
External dimensions 2980×944×2630mm


Packaging and delivery

Packaging Details
Wooden case

Supply Ability

Supply Ability
15 Set/Sets per Month
