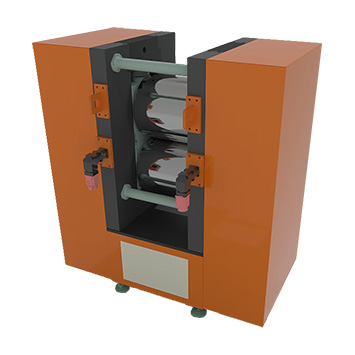

Gravity rolling machine

Product Item : JSD-Y400A-1
Category： Rolling machine
Gravity rolling machine
Thermal conductive silicone calender
silicone rubber rolling machine
small rolling machine
INQUIRY EMAIL

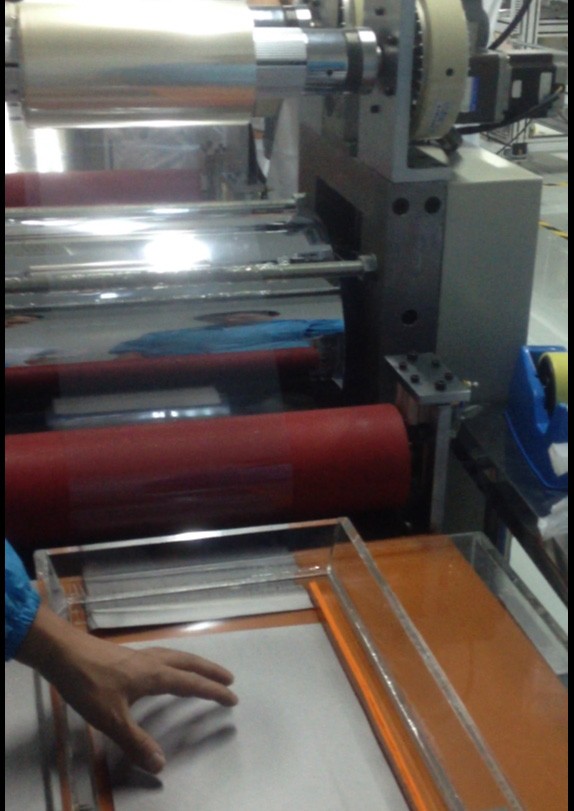

The gravity rolling machine uses 100 tons of pressure pressing material, suitable for pressing plate and roll rolling materials of different materials such as PV, PE, tin plate, aluminum plate, silicone rubber, thermal conductive silicon, etc. By varying degrees of compression, the material surface is made smoother and the thickness is more uniform.
Adopting PLC control system, it can effectively control speed and drum clearance
Digital roller clearance for more precise adjustment

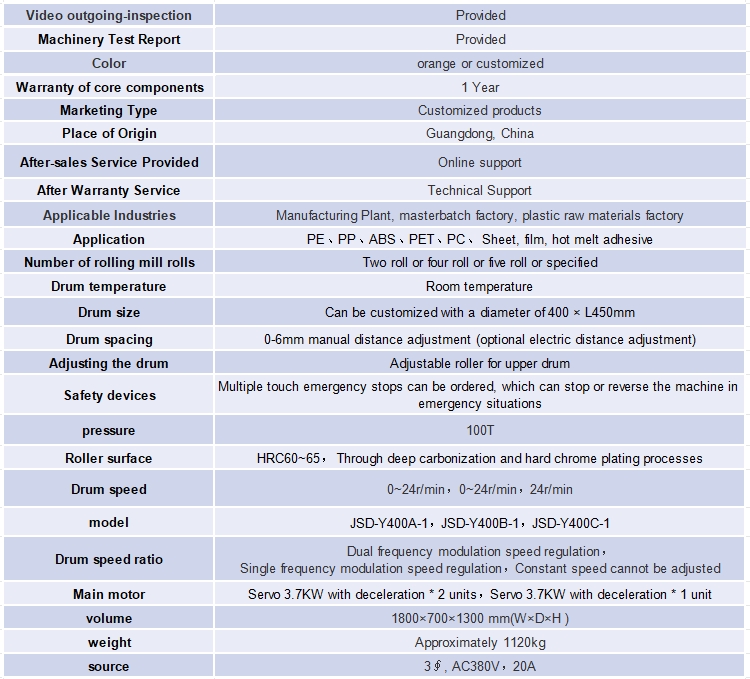

Key attributes

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Color	orange or customized
Warranty of core components	1 Year
Marketing Type	Customized products
Place of Origin	Guangdong, China
After-sales Service Provided	Online support
After Warranty Service	Technical Support
Applicable Industries	Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application	PE、PP、ABS、PET、PC、 Sheet, film, hot melt adhesive
Number of rolling mill rolls	Two roll or four roll or five roll or specified
Drum temperature	Room temperature
Drum size	Can be customized with a diameter of 400 × L450mm
Drum spacing	0-6mm manual distance adjustment (optional electric distance adjustment)
Adjusting the drum	Adjustable roller for upper drum
Safety devices	Multiple touch emergency stops can be ordered, which can stop or reverse the machine in emergency situations
pressure	100T
Roller surface	HRC60~65， Through deep carbonization and hard chrome plating processes
Drum speed	0~24r/min，0~24r/min，24r/min
model	JSD-Y400A-1，JSD-Y400B-1，JSD-Y400C-1
Drum speed ratio	Dual frequency modulation speed regulation，Single frequency modulation speed regulation，Constant speed cannot be adjusted
Main motor	Servo 3.7KW with deceleration * 2 units，Servo 3.7KW with deceleration * 1 unit
volume	1800×700×1300 mm(W×D×H )
weight	Approximately 1120kg
source	3∮, AC380V，20A
