  • China machine Experimental PLA PE film blowing machine
  • China machine Experimental PLA PE film blowing machine
  • China machine Experimental PLA PE film blowing machine
China machine Experimental PLA PE film blowing machineChina machine Experimental PLA PE film blowing machineChina machine Experimental PLA PE film blowing machine

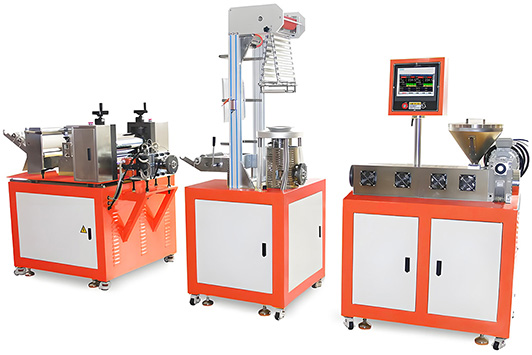

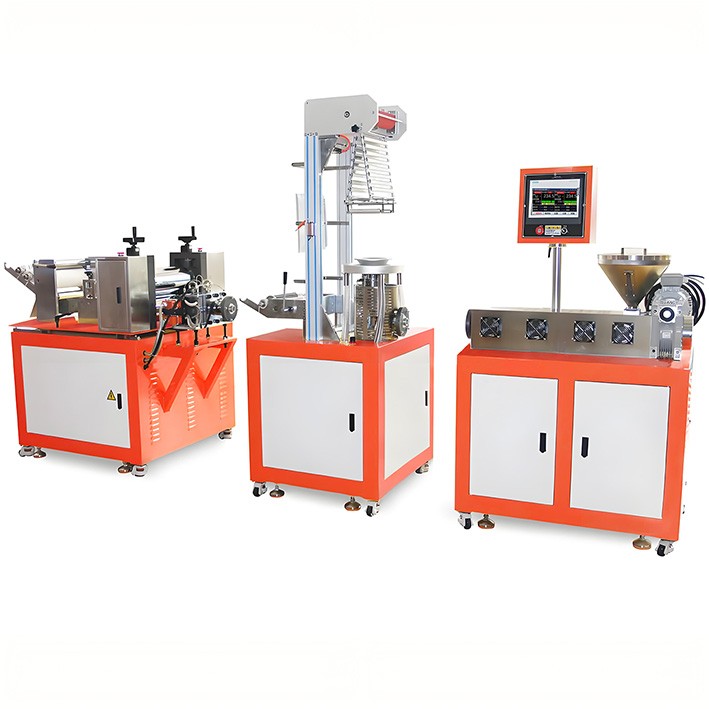

China machine Experimental PLA PE film blowing machine

  • Product Item : JSD-C043A-1
  • Category: Blowing film machine
  • Three layer co extrusion blown film machine
  • Experimental PLA PE film blowing machine
  • PBAT film blowing machine
  • high and low pressure polyethylene film blowing machine
  • INQUIRY   EMAIL

PE、LDPE、LLDPE、 Blow film grade PP, color masterbatch, filling masterbatch, plastic additives, functional masterbatch, etc.

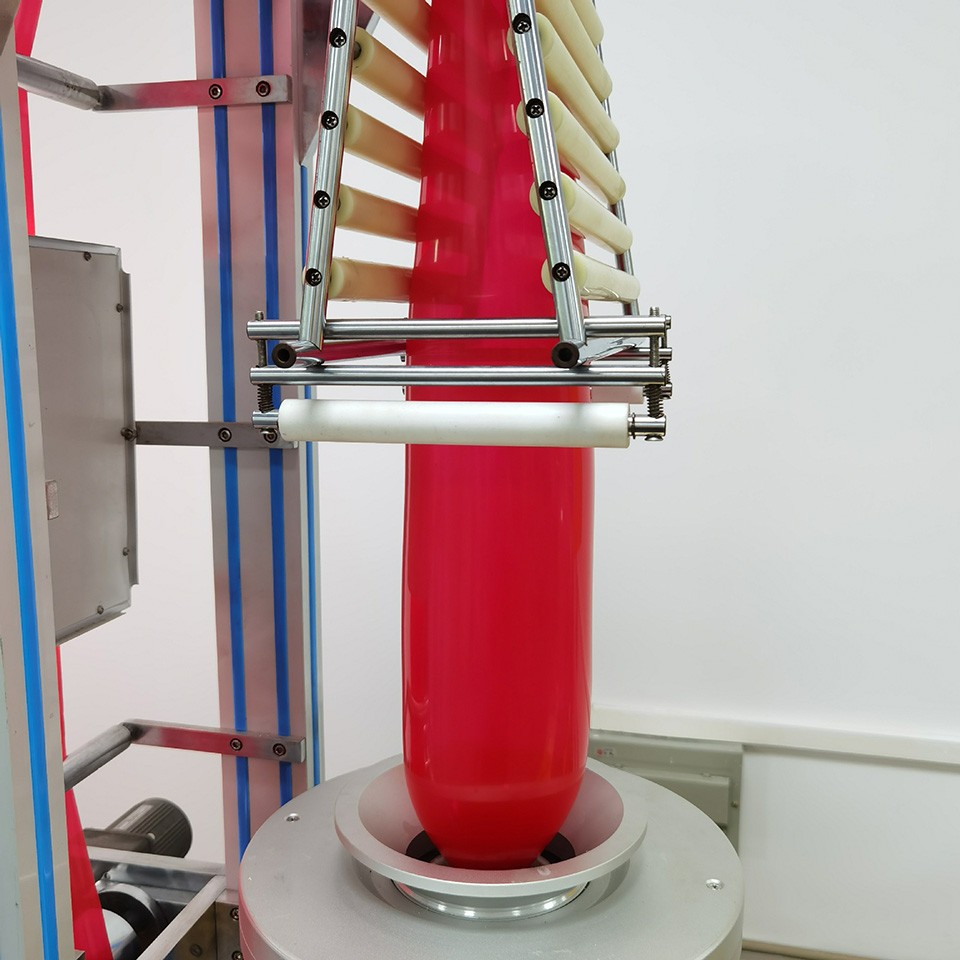

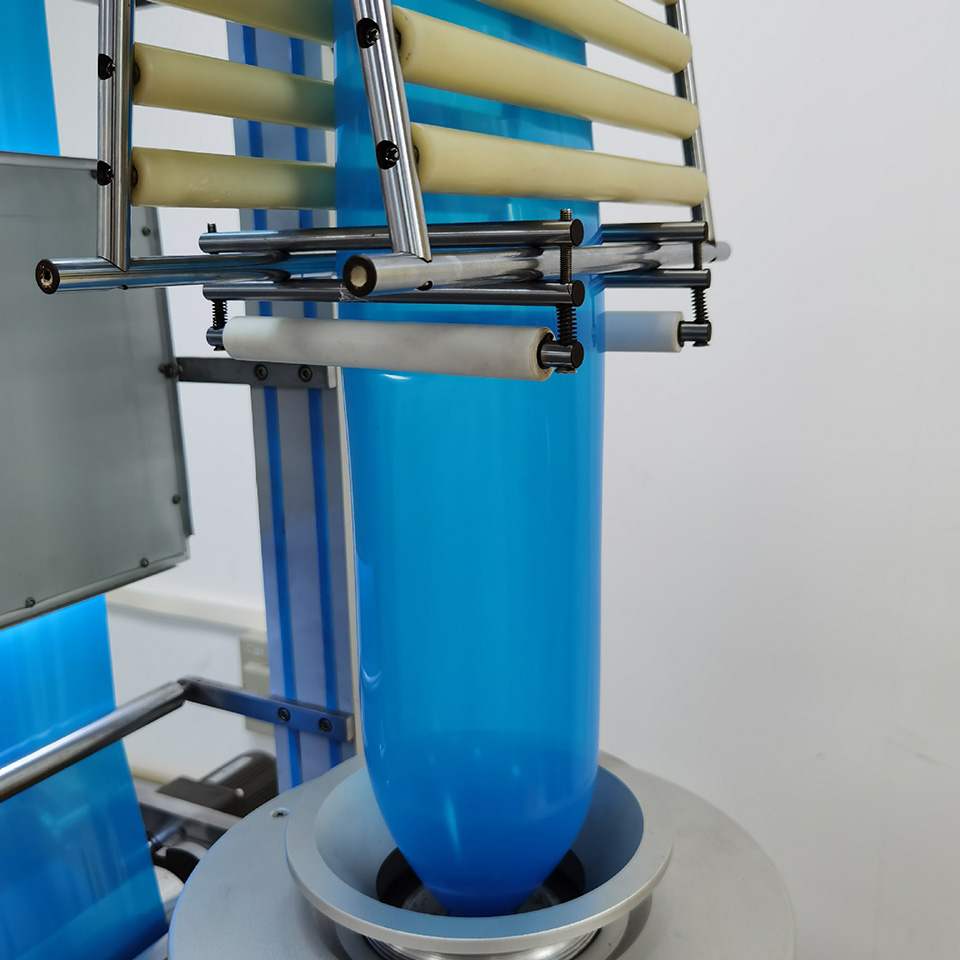

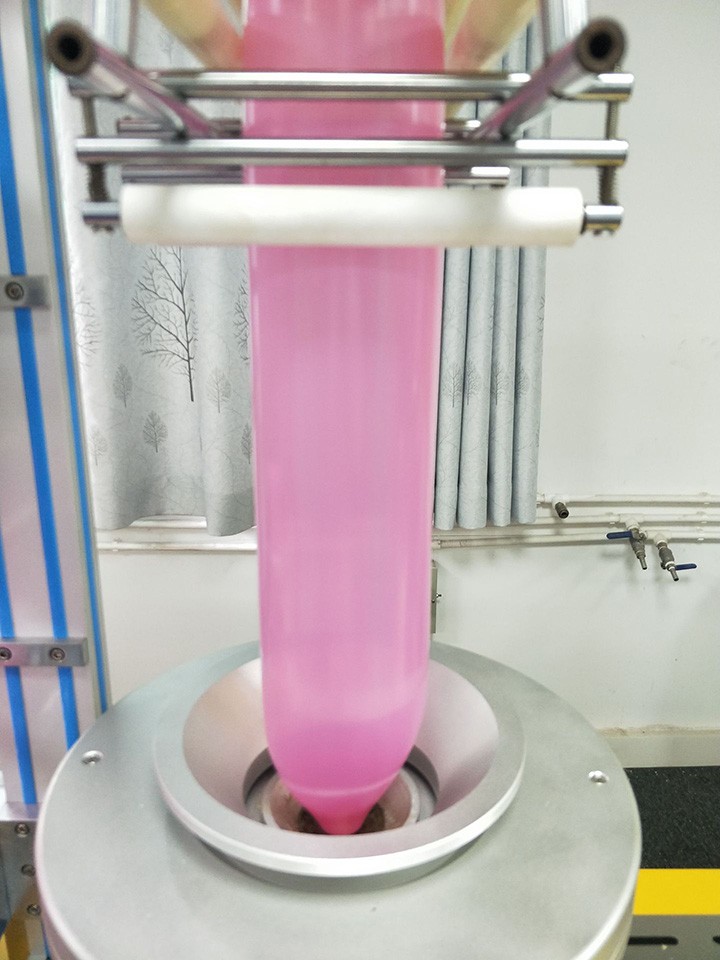

Extrusion blown film refers to the process of continuously extruding plastic melt through a die under a certain temperature and shear force, and obtaining a double folded plastic film through compressed air blowing, wind ring cooling, and variable frequency traction. This machine is mainly used to detect the feasibility of blowing polymer materials and the gum condition inside the materials, as well as the dispersion of colored dispersions, control mixtures, and extrudates.

Experimental PLA PE film blowing machineExperimental PLA PE film blowing machine


Experimental PLA PE film blowing machine

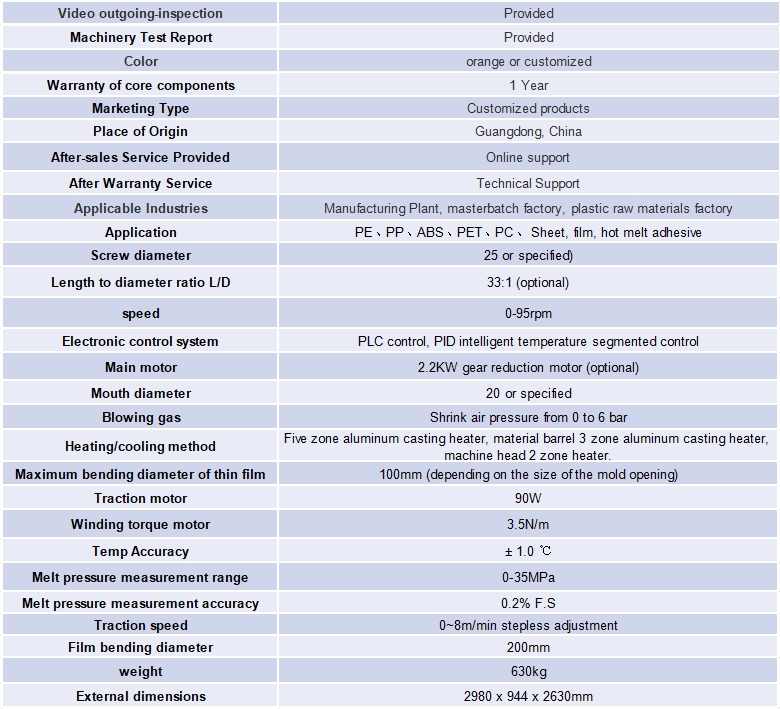

Key attributes


Video outgoing-inspection Provided
Machinery Test Report Provided
Color orange or customized
Warranty of core components 1 Year
Marketing Type Customized products
Place of Origin Guangdong, China
After-sales Service Provided Online support
After Warranty Service Technical Support
Applicable Industries Manufacturing Plant, masterbatch factory, plastic raw materials factory
Application PEPPABSPETPC Sheet, film, hot melt adhesive
Screw diameter 25 or specified)
Length to diameter ratio L/D 33:1 (optional)
speed 0-95rpm
Electronic control system PLC control, PID intelligent temperature segmented control
Main motor 2.2KW gear reduction motor (optional)
Mouth diameter 20 or specified
Blowing gas Shrink air pressure from 0 to 6 bar
Heating/cooling method Five zone aluminum casting heater, material barrel 3 zone aluminum casting heater, machine head 2 zone heater.
Maximum bending diameter of thin film 100mm (depending on the size of the mold opening)
Traction motor 90W
Winding torque motor 3.5N/m
Temp Accuracy ± 1.0
Melt pressure measurement range 0-35MPa
Melt pressure measurement accuracy 0.2% F.S
Traction speed 0~8m/min stepless adjustment
Film bending diameter 200mm
weight 630kg
External dimensions 2980 x 944 x 2630mm


Packaging and delivery

Packaging Details
Wooden case

Supply Ability

Supply Ability
15 Set/Sets per Month
